HCI HBL67W49 WATERTIGHT RECEP ASSY,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL67W49 | Codale Part # 4160988
$93.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

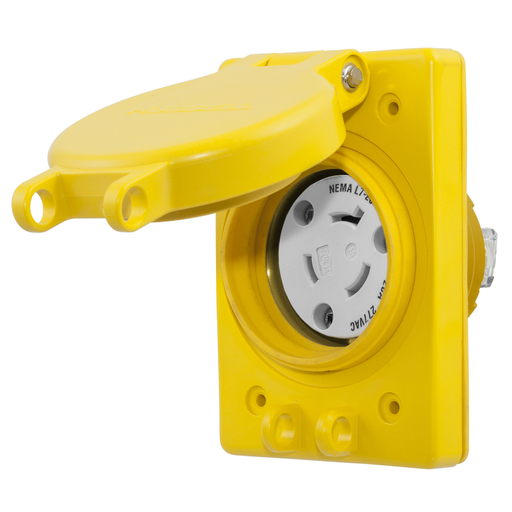

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 277VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-20R, Yellow.

Technical Information

Amperage
20 Amp
Applications
Commercial, Industrial
Conductor Size
18-8 AWG
Current
20 Amp
Material
Thermoplastic
NEMA
L7-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw, 6 Terminals
Type
Receptacle
Voltage
277 Volt
Wattage
5540 Watt
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585433165
Color
Black on Yellow
Environmental Conditions
Watertight
Product UPC
78358543316
Weight
0.3000 lb

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
