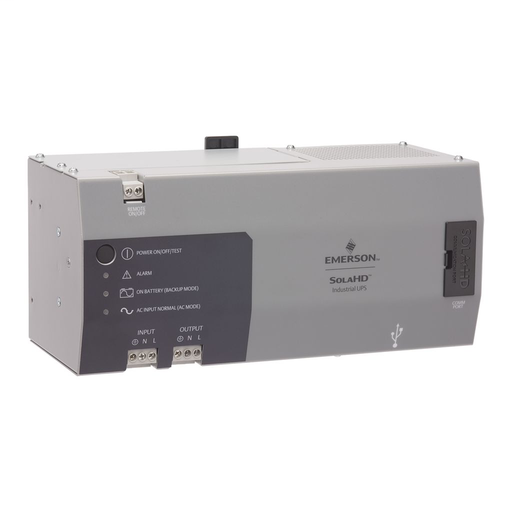

SHD SDU850A OFFLINE UPS 850VA 120V

Manufacturer: Sola/Hevi-Duty Products | Catalog # SDU850A | Codale Part # 4161749
$869.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet
The SDU AC - A Series DIN Rail UPS System combines an industry leading compact design with a wide operation temperature range, enhanced communications and unique installation options. The SDU-A Series provides economical protection from damaging impulses and power interruptions. These units include easy to wire screw terminations for critical devices needing battery back-up such as computer based control systems.

Technical Information

Amperage
850 VA
Applications
For Industrial Use
Battery Type
Sealed, Non-Spillable, Maintenance-Free, Lead Acid
Connection Type
Screw Terminal
Enclosure
IP20
Mounting Type
DIN Rail
Number of Phases
1 Phase
Power Rating
850 VA/510 W
Temperature Rating
-15 to 50 degrees C
Voltage
120 VAC
Wattage
510 Watt

Manufacturer Information

Brand
Emerson Electric Co.
Sub Brand
SolaHD™

General Product Info

12-Digit UPC
783472874712
Environmental Conditions
1 - 95%, Non-Condensing Relative Humidity, 1 - 95% Humidity Non-Condensing, 0 - 50 C Up to 6600 ft
Product UPC
78347287471

Dimensions

Height
4.81 Inch
Length
4.87 Inch
Width
11.1 in
Features
  • cRUus, CE, RoHS Compliant, Federal Comminucations Commission, ODVA Compliant
  • Lightweight, compact industrial design
  • Communications port for optional Industrial Ethernet protocols or discrete communication cards
  • USB communication port
  • Wide operation temperature range and cold start capability
  • Remote turn-on and shut-off capabilities
  • Simulated sinewave output
  • Software and cable included for easy installation
  • Panel/wall mounting brackets (optional)
