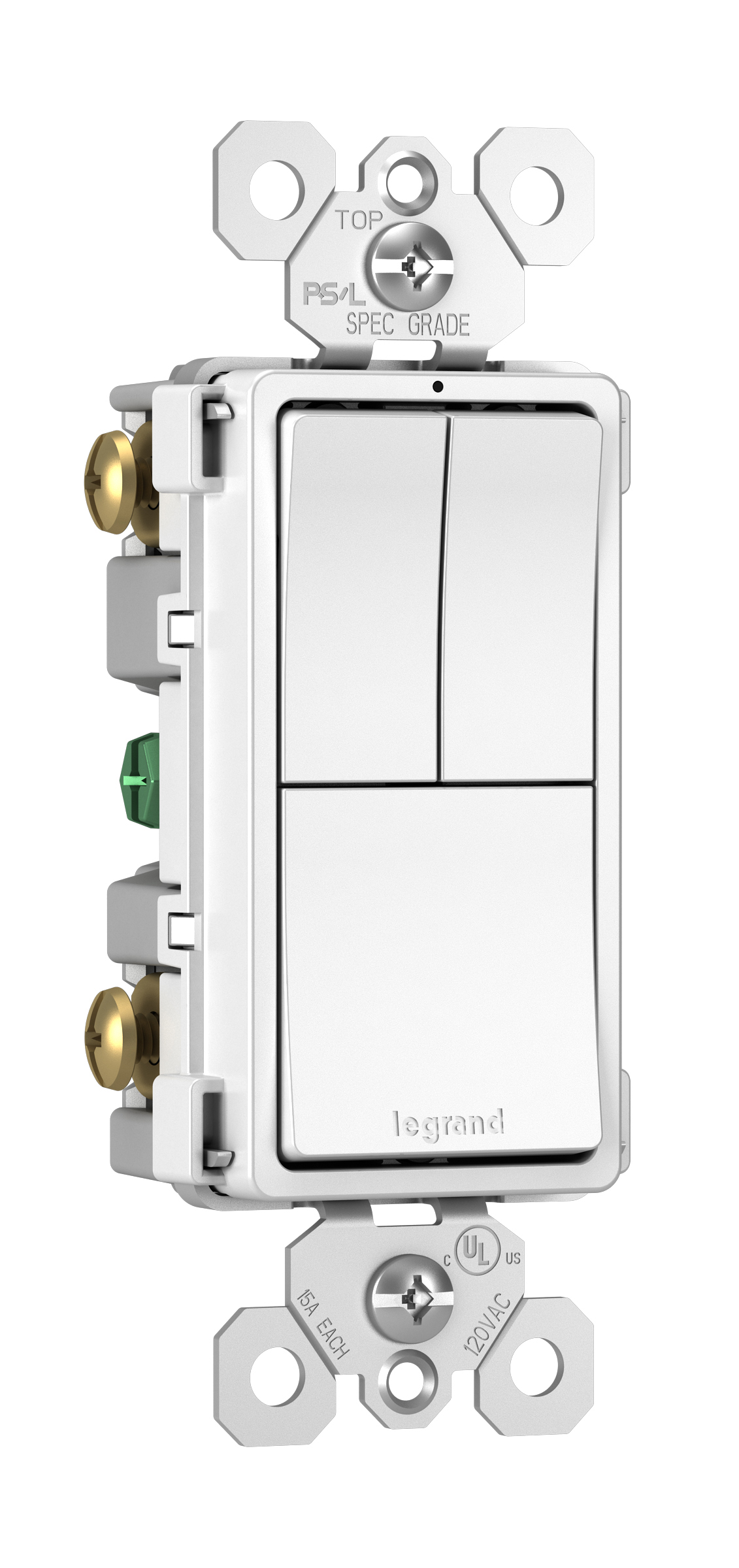

Product image for Pass & Seymour RCD113W Radiant Combination (2) Single Pole and (1) 3-Way Switches, 15A 120V - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Pass & Seymour RCD113W Radiant Combination (2) Single Pole and (1) 3-Way Switches, 15A 120V - White

Manufacturer: Legrand Pass & Seymour | Catalog # RCD113W | Codale Part # 4162267
$105.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
More control, less space. This combination switch provides control of multiple lights or devices from a single location, while featuring an oversized primary switch for easy use. Designed to emulate the sleek lines of the collection's paddle switches, it delivers flexible, space-saving control with the sophisticated look of radiant. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Action
On
Actuator
Rocker Switch
Amperage
15 Amp
Applications
Residential
Contact Configuration
15A
Contact Rating
120 V
Load Type
Resistive, Inductive, Tungsten Filament Lamp, LED
Material
Plastic
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
3 Pole
Number of Switches
3
Operating Cycles
50000
Operating Temperature
Maximum continuous +115degrees C, minimum -40degrees C
Size
Depth 1.43" x Width 1.29" x Height 3.81"
Switch Type
Push
Temperature Rating
115 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
Switch
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007054774
Color
White
Finish
Matte
Product UPC
78500705477

Dimensions

Depth
1.59 Inch
Height
3.81 Inch
Warranty Length
1 yr
Width
1.29 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Offers installation flexibility with space-saving style, as part of the extensive offering from the radiant® Collection.
  • Features durable, high-impact resistant thermoplastic construction.
  • Designed to install easily with a narrower back body and captivated mounting screws.
  • Patented Snap-In Light Module (sold separately) transforms a combination switch into an illuminated switch in seconds.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • UL Listed
  • cULus Listed
