HWDK SNAP2152WTRA SNAPCONNECT DECO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP2152WTRA | Codale Part # 4164830
$26.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

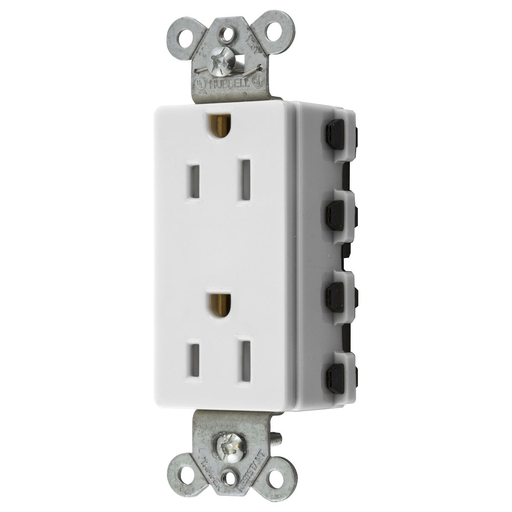

Straight Blade Devices, Receptacles, Tamper Resistant, Style Line Decorator Duplex, SNAPConnect 2, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, White.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Specification Grade
Conductor Size
12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Style
Style Line Decorator
Type
Non-Reversing
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585551685
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358555168
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
USA
Features
  • Aesthetic Style Line® decorator design
  • Quick Connect- SNAPConnect, Tamper-Resistant, USA Product
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
Performance
  • Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (without impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
