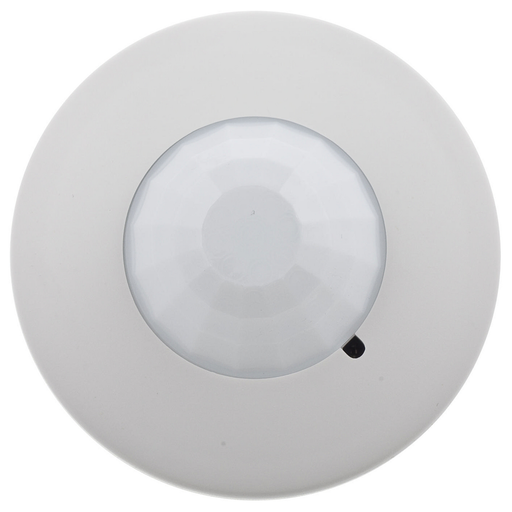

Product image for Hubbell LVPR1500R L VOLT PIR CEIL SEN 1500SFT 120-347V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell LVPR1500R L VOLT PIR CEIL SEN 1500SFT 120-347V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # LVPR1500R | Codale Part # 4165277
$226.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Occupancy Sensor, Passive Infrared, 120-347 VAC, Ceiling Mounted, 1500 Square Feet

Technical Information

Amperage
10 mA
Applications
Ceiling Mount
Frequency
50/60 Hz
Indicator
PIR= Red LED
Lens Type
LED
Material
Plastic
Mounting Type
Ceiling, Wall, Screw
Operating Cycles
6k
Operating Temperature
0 To 40 degrees C
Response Time
30 min
Sensing Range
8 to 12 Feet Mounting Height
Sensor Type
Adaptive Passive Infrared
Standard
CULus,UL244A
Style
Line Voltage
Temperature Rating
0 degrees C to 40 degrees C
Type
Low Voltage, Adjustable Sensitivity, Presence Detector
Voltage
120-347 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
H-Moss®

General Product Info

12-Digit UPC
783585181271
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Passive Infrared
Product UPC
78358518127
Weight
0.6500 lb

Dimensions

Height
3.4 Inch
Length
5 Inch
Width
4.800 in

Certifications and Compliance

Country of Origin
China
Features
  • Coverage 1500 sq. ft. (360°), line voltage sensor
  • Long range major motion detection in a compact low profile housing
  • Voltage 120-347V AC with photocell
  • Self-contained power supply with high load relay
  • Directly mounts to 4\" octagon boxes, 2.125\" deep
  • White ABS enclosure
  • Red LED indicates passive infrared detection
  • Standard Product
