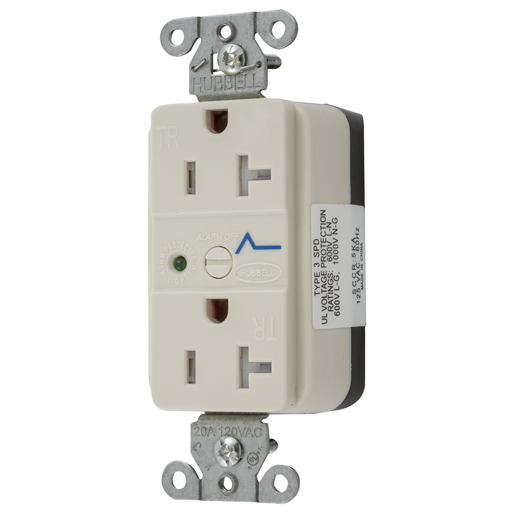

HWDK SNAP5362LAS SNAP SPD RCPT, 20A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP5362LAS | Codale Part # 4165351
$187.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Light Almond

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Specification Grade
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.75 in x 1.75 in
Standard
C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
Style
Smooth Face
Tc Connection
Connectorized
Type
Surge Protection Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585252100
Color
Almond
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358525210
Weight
0.25 lb

Dimensions

Height
1-3/4 Inch
Length
3.28 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Surge supression, Tamper-Resistant, LED Indicator
  • Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
