Milwaukee 48-13-6809 15/16" x 24" SHOCKWAVE™ Lineman's Impact Auger Bit

Manufacturer: Milwaukee Tool | Catalog # 48-13-6809 | Codale Part # 4166197

$77.21/ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check your local branch

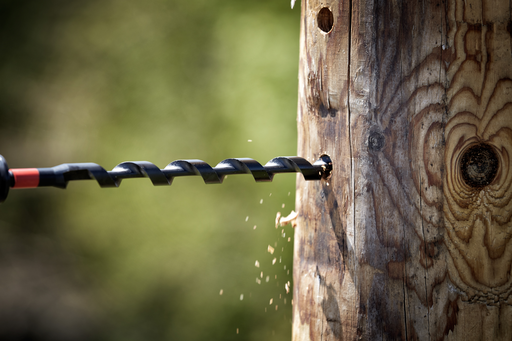

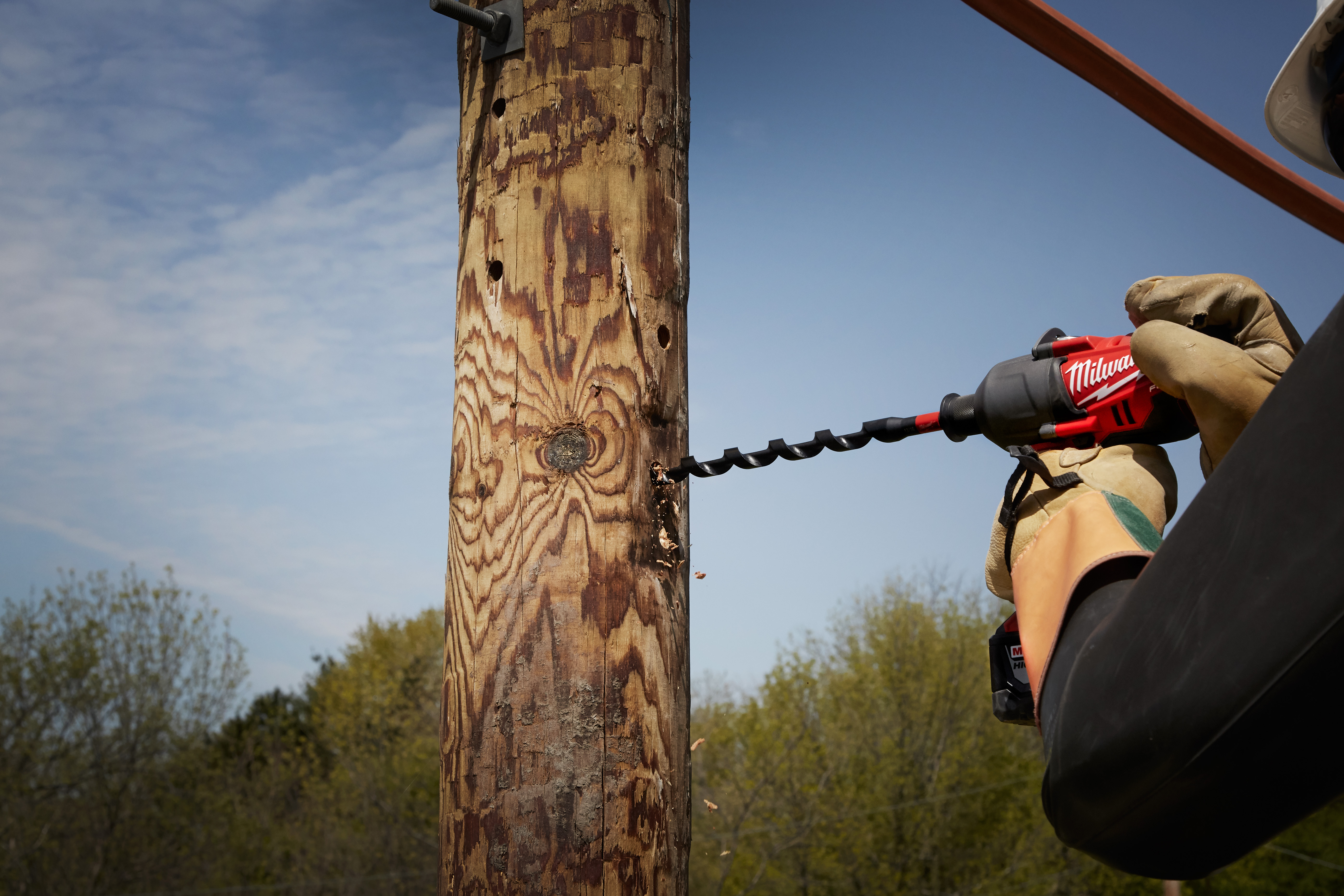

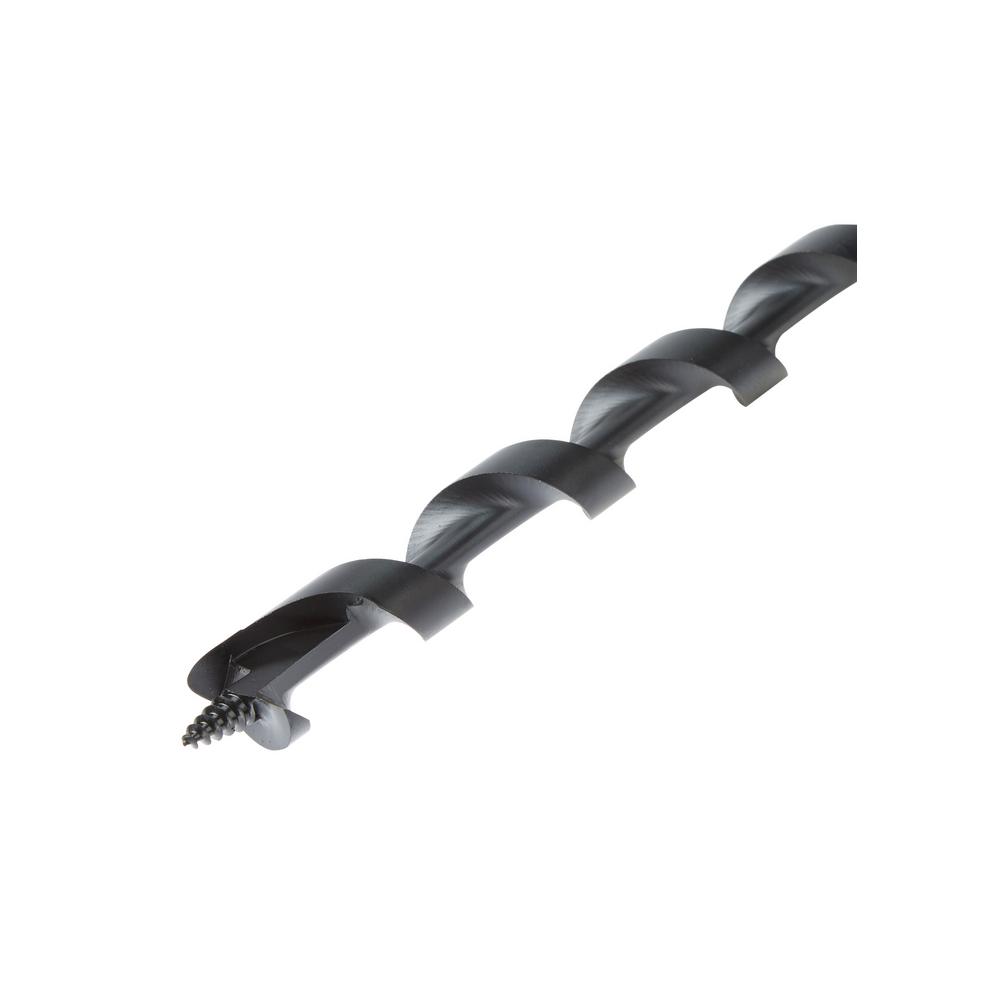

The SHOCKWAVE™ lineman's impact auger bits are engineered to deliver cleaner, faster holes in wooden utility poles. They feature a single spur design, which scores the edge of the hole, creating a cleaner finish that allows bolts to slide through without resistance. The bits are coated with a reinforced anti-friction PTFE coating for overall smoother drilling and easier removal of the bit from the pole. The aggressive feed screw and cutting edge pull the bit through the material while the optimized wide flute geometry quickly ejects the chips to clear the hole and reduce clogs, leading to overall faster drilling speeds.

Technical Information

Applications
For Drilling into Wooden Utility Poles
Bit Diameter
15/18 in
Bit Type
Auger
Drilling Depth
21 in
Material
Steel
Number of Flutes
1
Shank Size
7/16 in
Shank Type
Hexagonal, Quick-Change
Type
Lineman's, Utility

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
Shockwave™

General Product Info

12-Digit UPC
045242503537
Product UPC
04524250353
Weight
1.5000 lb

Dimensions

Diameter
15/16 Inch
Flute Length
21.0 in
Length
24 Inch
Overall Length
24 in
Shank Diameter
0.4375 in
Features
  • Engineered for the power utility lineman to drill cleaner, faster holes in wooden utility poles
  • Single spur design scores the hole for a cleaner finish
  • Reinforced anti-friction PTFE coating for overall smoother drilling
  • Optimized wide flute geometry for faster chip ejection
  • Aggressive feed screw and cutting edge for faster drilling speeds
  • 7/16 in. hex shank for quick connection into 7/16 in. quick connect chucks
  • Available in 18 in. and 24 in. lengths
  • Designed for drilling into wooden utility poles
  • Recommended for clean wood only
  • Solid stemmed core for added strength
