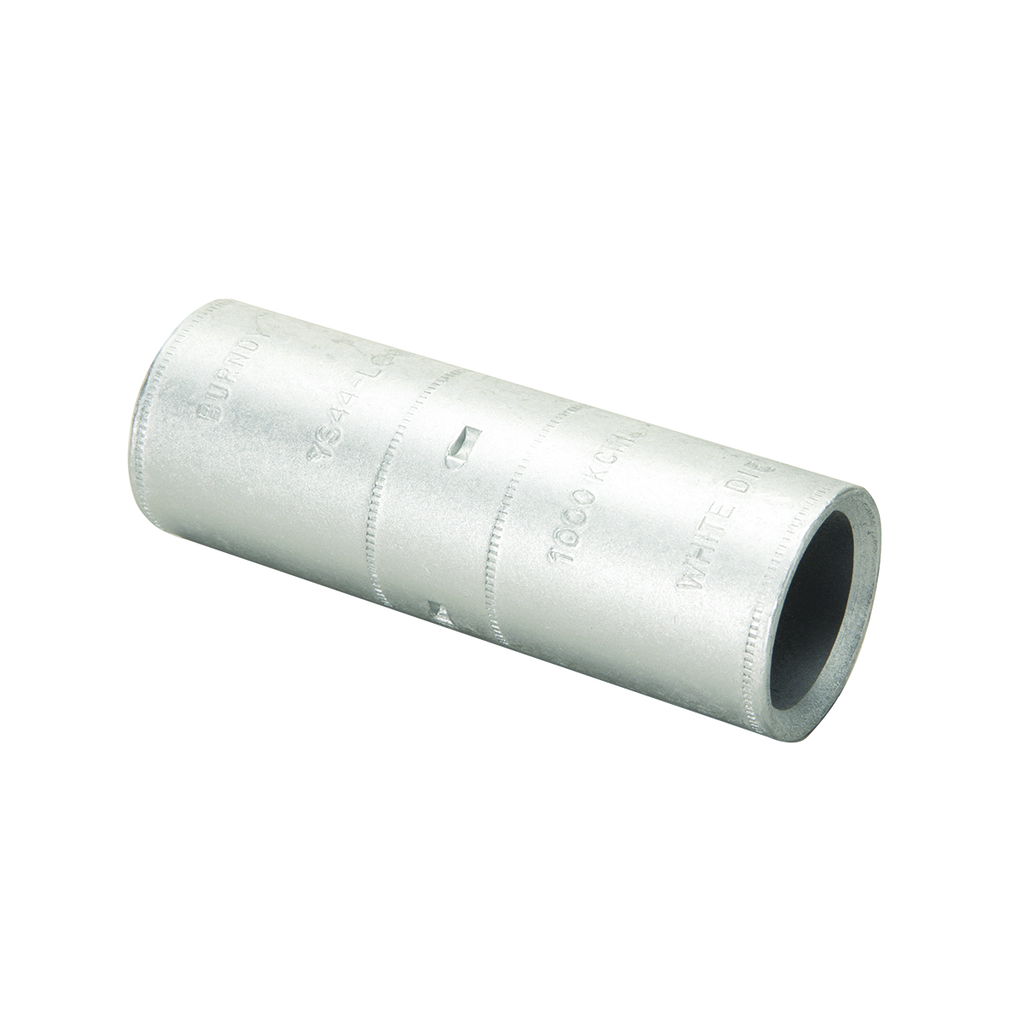

Product image for Burndy YS44L 1000 kcmil CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, WHITE Color Code, 27 Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YS44L 1000 kcmil CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, WHITE Color Code, 27 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YS44L | Codale Part # 4167533
$166.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hylink Cu compression standard barrel code splice tubing, Beveled entry, 1000 kcmil Cu, 600V-35KV, Tin plated

Technical Information

Color Coding
White
Conductor Size
1000 kcmil
Connection Type
Splice
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Wire Size
1000 kcmil

Manufacturer Information

Brand
Burndy

General Product Info

12-Digit UPC
781810527757
Color
Black
Finish
Tin Plated
Product UPC
78181052775
Weight
2.4480 lb

Dimensions

Length
4.28 Inch
Overall Length
4.28 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
