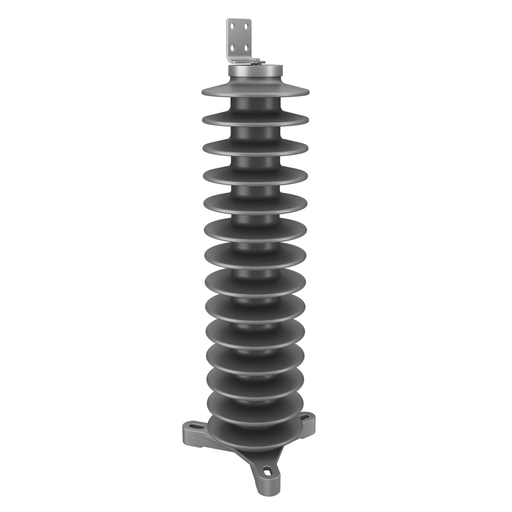

Current EVP0074003001 EVP 90KV Arrester

Manufacturer: Current by GE | Catalog # EVP0074003001 | Codale Part # 4167534
$2,538.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet
IEEE Station Class / IEC Station Medium Polymer Housed Surge Arrester

Technical Information

Applications
Station
Bolt Size
.50 in
Frequency
48-62 Hz
Material
ESP™ Polymer Housing
Size
46.3 in (1176 mm)
Standard
IEC,IEEE
Type
ANSI,Station

Manufacturer Information

Brand
Ohio Brass
Sub Brand
Ohio Brass

General Product Info

12-Digit UPC
096359506348
Class
Station
Color
Gray
Product UPC
09635950634
Weight
59 lb

Dimensions

Height
46.3 Inch
Length
48-1/4 Inch
Width
10.313 in

Certifications and Compliance

Country of Origin
USA
Features
  • EVP solid core station arresters comply with the latest revision of IEEE C62.11 and IEC 60099-4
  • Long lasting ESP
  • housing material with superior mechanical strength and electrical characteristics
  • Robust sealing system protects internal components from moisture ingress to extend service lifetime
  • High quality MOV discs made in Wadsworth, Ohio since 1978
  • Assembled in Aiken, South Carolina
  • 100% routine tested
Maximum Discharge Voltage
  • 186 kV @ 1.5 kA
  • 195.5 kV @ 3 kA
  • 204.9 kV @ 5 kA
  • 219.9 kV @ 10 kA
  • 237.7 kV @ 20 kA
  • 271.1 kV @ 40 kA
