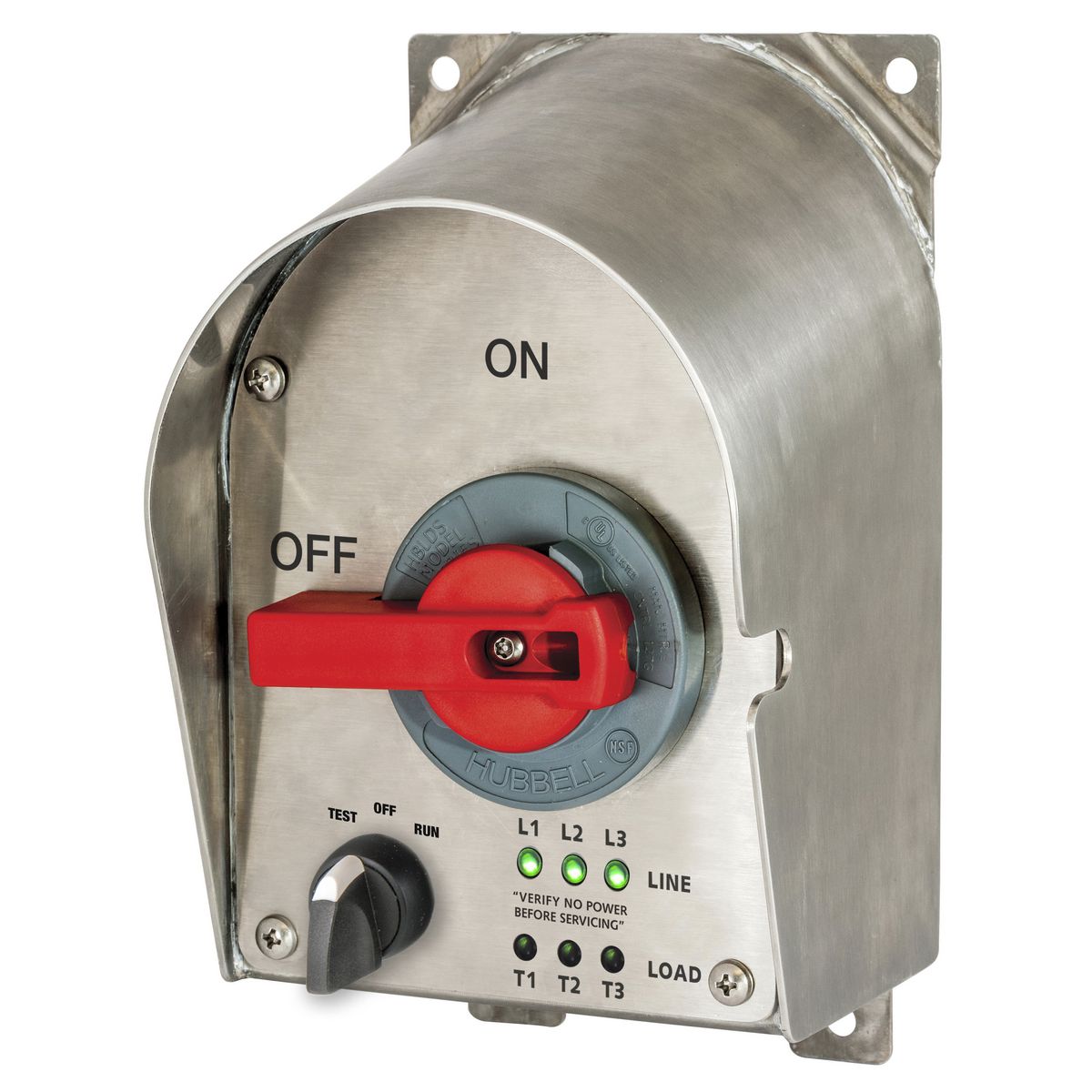

Product image for HWDK HBLDS3SSRPJ SLOPED DISC, UN-F,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBLDS3SSRPJ SLOPED DISC, UN-F,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS3SSRPJ | Codale Part # 4168157
$1,877.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Disconnect Switches, Sloped Enclosure,Nonfused, 30A 600V AC, NEMA 4X, Stainless Steel, With LEDs and Jog

Technical Information

Amperage
30 Amp
Applications
For Motor Control
Connection Type
Pressure Screw
Current
30 Amp
Enclosure
NEMA Type 4X
Load Rating
18000 W
Mounting Type
Screw
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
Minimum Continuous -40 Deg C without Impact
Reset Type
No Reset/Overload
Size
Standard Sized
Style
Heavy Duty
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C Minimum Continuous without Impact
Type
Standard, Unfused
Voltage
600 VAC
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Motor Starting/Disconnect Switches

General Product Info

12-Digit UPC
783585365183
Environmental Conditions
Indoor or Outdoor
Product Series
Non-Fused
Product UPC
78358536518
Shape
Sloped Top
Weight
6.500 lb

Dimensions

Height
8.3 Inch
Length
10.2 Inch
Width
9.5 in

Certifications and Compliance

Country of Origin
China
Features
  • Six highly visible integral phase identification LEDs for use on 3 Phase Y system
  • LEDs provide secondary means of visual confirmation of make/break on all phases
  • Cover cannot be removed with switch in the ON position
  • Verification of opening of load side contacts
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
