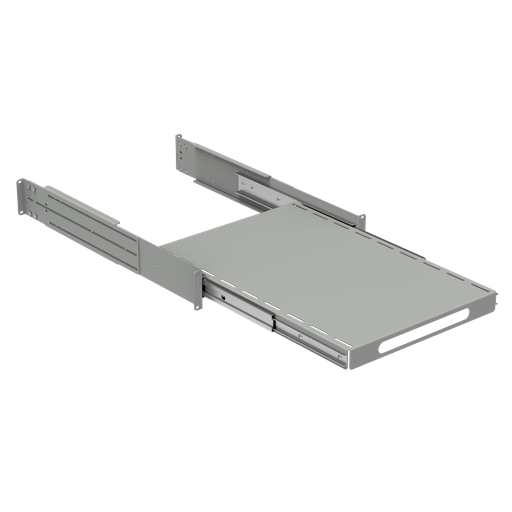

Product image for Hoffman P19SHP68 Rack Mount Pull-out Shelf, 17in pull, Lt Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman P19SHP68 Rack Mount Pull-out Shelf, 17in pull, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # P19SHP68 | Codale Part # 4169340
$1,023.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The Rack-Mount Sliding Shelf allows easy access to shelf-mounted devices. The shelf is 16-gauge steel with 12-gauge steel supports. The shelf mounts to the front surface of front and back rack angles. When mounted directly to a frame, load rating is 150 lb. (68 kg) with four rack angle mountings and 75 lb. (34 kg) with front rack angle mounting. Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Load Capacity
150 lb
Material
Steel
Rack Unit
2
Type
Sliding, Pull-Out

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510304348
Color
RAL 7035 Textured Light Gray
Finish
Powder Coated
Used With
19 in Racks
Weight
19.74 lb

Dimensions

Depth
26.02 Inch
Height
1-1/2 Inch
Length
20-1/4 Inch
Thickness
1.52 mm
Width
15.87 in
Features
  • Shelf is 16-gauge steel with 12-gauge steel supports
  • Mounts to the front surface of front and back rack angles
  • Load rating is 150 lb. (68 kg) with four rack angles mounted directly to frame verticals; load rating reduced to 75 lb. (34 kg) with front rack angle mounting only
  • Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately
