Hubbell HBL7217BCAT#7210B ON ROUND 4" BOX CVR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7217B | Codale Part # 4170675
$39.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

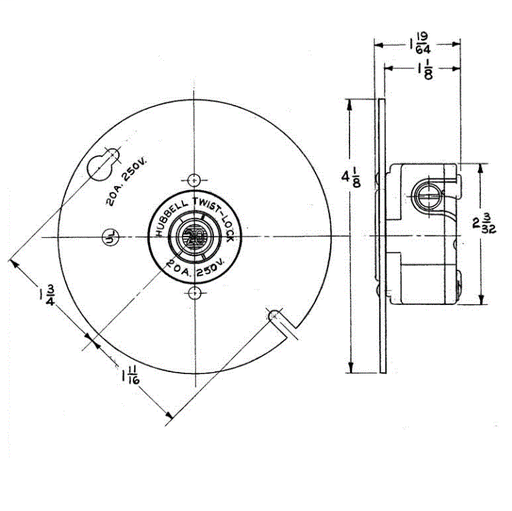

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black, Mounted to 4" Round Box Cover.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
16-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Horsepower
2 hp
Material
Thermoplastic
NEMA
L2-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
2,2
Operating Temperature
-40 degrees C
Size
4.12 in x 1.29 in x 1.29 in
Standard
Fed.Spec.W-C-596
Tc Connection
Screw Terminals
Type
Receptacle
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
2
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585237114
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523711
Weight
0.30 lb

Dimensions

Height
1.29 Inch
Length
4.12 Inch
Width
1.29 in

Certifications and Compliance

Country of Origin
USA
Features
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Face color coding by voltage facilitates locating and mating of proper devices
  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Mounted to 4\" Round Box Cover
