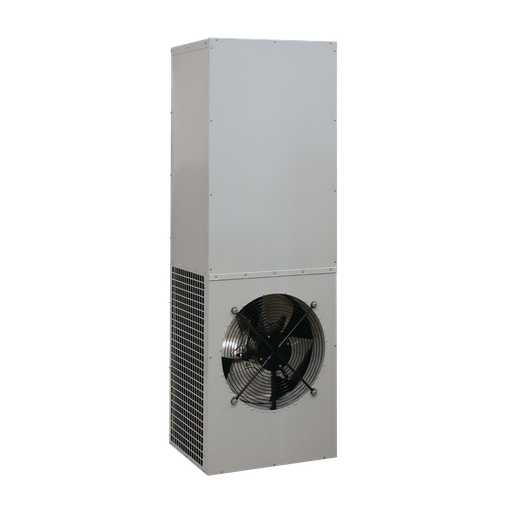

Product image for Hoffman T703626G150 T-SERIES Large Capacity Outdoor, 2" x 2" x 2", Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman T703626G150 T-SERIES Large Capacity Outdoor, 2" x 2" x 2", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # T703626G150 | Codale Part # 4170731
$32,774.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
T-Series Large Capacity Air Conditioners keeps equipment cool even at peak heat loads. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.

Technical Information

Applications
Controls and Drives; Power Distribution
BTU Hour
43000 BTU
Color Coding
RAL 7035
Material
Steel
Max Current
36.0 A
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Type
Air Conditioners
Voltage
230
Wattage
12602 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
T-Series

General Product Info

12-Digit UPC
783510234072
Color
Gray
Finish
Powder Coated
Product UPC
78351023407
Weight
356 lb

Dimensions

Depth
20.94 Inch
Height
69.77 Inch
Length
38-1/4 Inch
Thickness
1.21 mm
Width
22.8 in
DISK UNSPSC
40101701
Features
  • Compact footprint to minimize real estate and maximize capacity
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R-407C refrigerant
  • Models for 230 and 460 VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Exterior and fully recessed mounting options on many models
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
  • Mounting hardware, gaskets and user manual furnished with the unit
