Panduit NK688MEI-Q NetKey Cat 6 Punchdown Jack, Electric Ivory - Pack of 25

Manufacturer: PANDUIT | Catalog # NK688MEI-Q | Codale Part # 4171019
$15.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

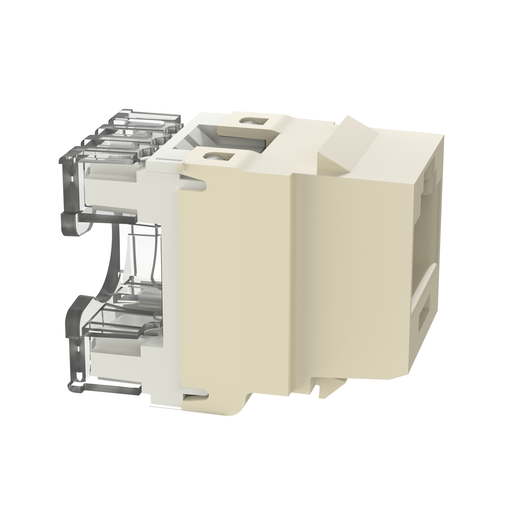

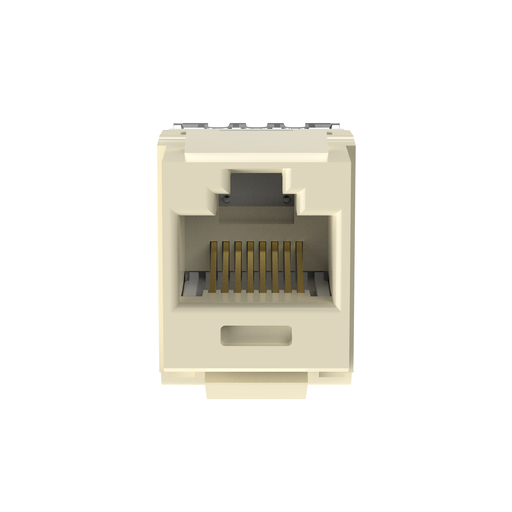

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is electric ivory and includes 25 per package.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Barrel Type
39121521
Battery Life
621.2300
Cable Size
26-22 AWG
Cable Type
Category 6
Cord Type
1
Data Key
Magnetic Starter
Jaw Opening
WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Operating Temperature
USD
Performance Level
Category 6
Splice Type
A
Standard
8536504000
Stud Size
827.6800
Temperature Rating
-10 to 65 degrees C
Tip Size
Y
Tip Type
0102010306
Type
8-Wire, Keystone, Unshielded
Voltage
00785901516194
Wire Size
MEX

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983997138
Color
Electric Ivory
Environmental Conditions
< 40 m? Humidity, < 40 m? Thermal Shock
Product UPC
07498399713
UNSPSC
43223301
Used With
T568A/T568B Cable
Weight
0.4500 lb

Dimensions

Depth
1.16 Inch
Diameter
X
Height
22.9 mm
Hole Size
L,X
Overall Length
29.5 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
