HCI HBL7417B CAT# HBL7410B, ON A RO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7417B | Codale Part # 4172307
$116.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Mounted on a 4" round metal cover, Black.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
16-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Material
Nylon
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size

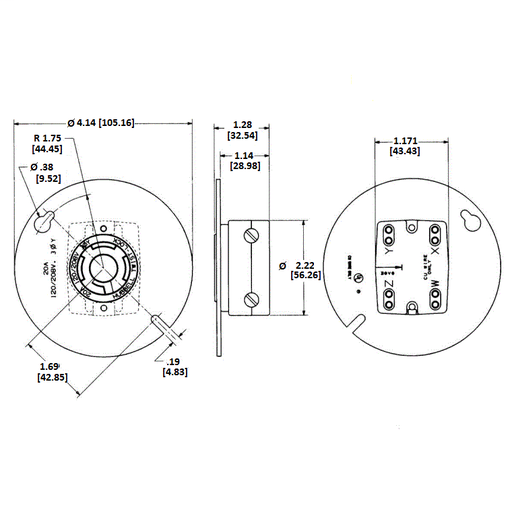

4.14 in x 4.14 in x 1.28 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585333700
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358533370
Weight
0.4 lb

Dimensions

Height
1.28 Inch
Length
4.14 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard
