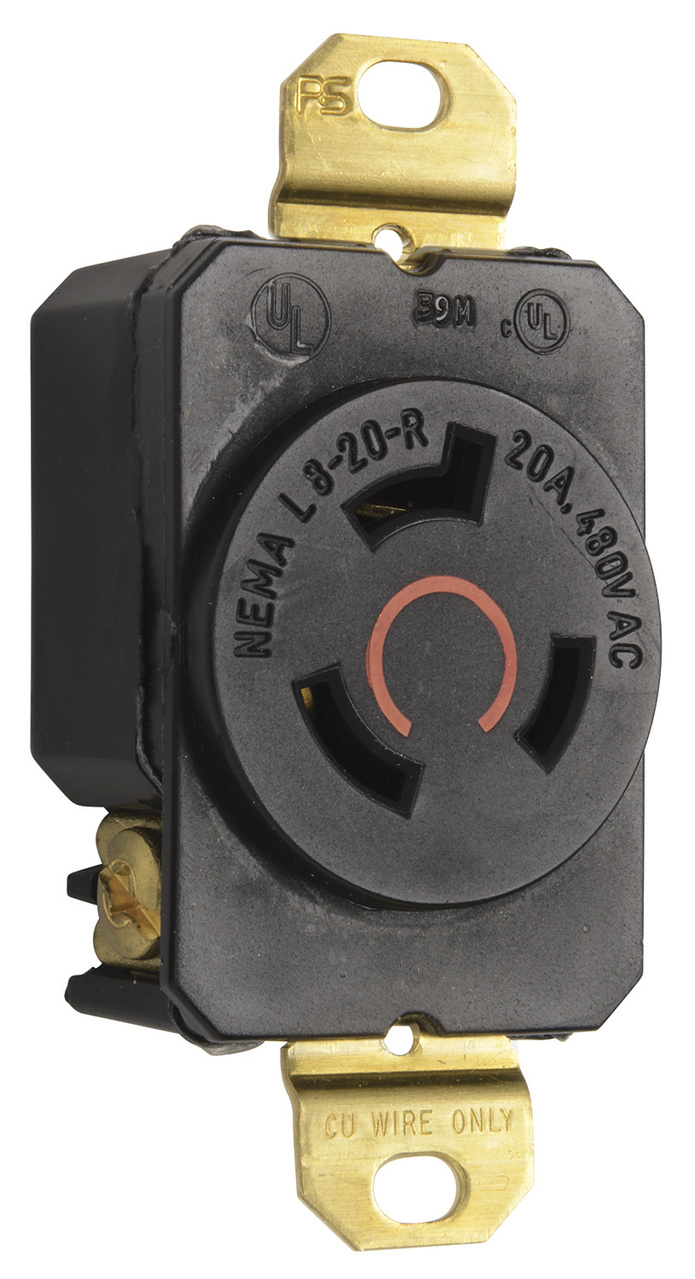

Pass & Seymour L820-R Industrial Spec Grade Turnlok Single Receptacle, 20A 480V

Manufacturer: Legrand Pass & Seymour | Catalog # L820R | Codale Part # 417233
$67.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Industrial Spec Grade SingleTurnlok 20amp 480V Receptacle

Technical Information

Amperage
20 Amp
Applications
For Industrial
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Material
Nylon
Mounting Type
Wall
NEMA
L8-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.61 L x 1.19 W x 3.28 H In
Tc Connection
Back and side wire
Temperature Rating
-40 to 75 degrees C
Type
Single Receptacles
Voltage
480 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Turnlok®

General Product Info

12-Digit UPC
785007282054
Color
Black
Environmental Conditions
-40 to 75 C
Product UPC
78500728205
UNSPSC
39121403

Dimensions

Depth
1.19 Inch
Height
2.29 Inch
Width
1.61 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.
Certifications
  • cULus Listed
