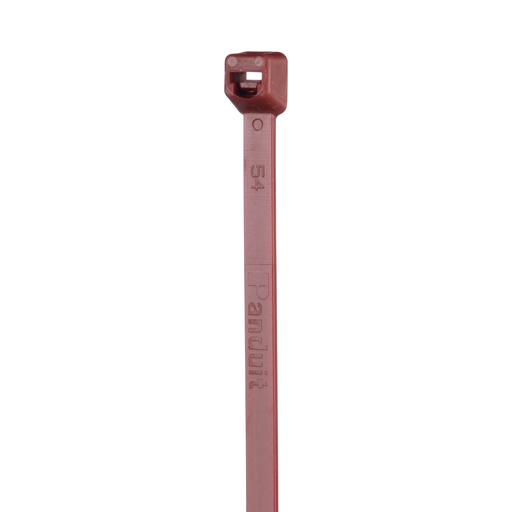

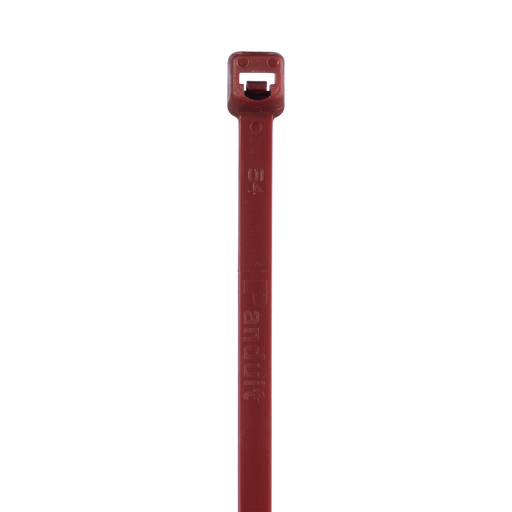

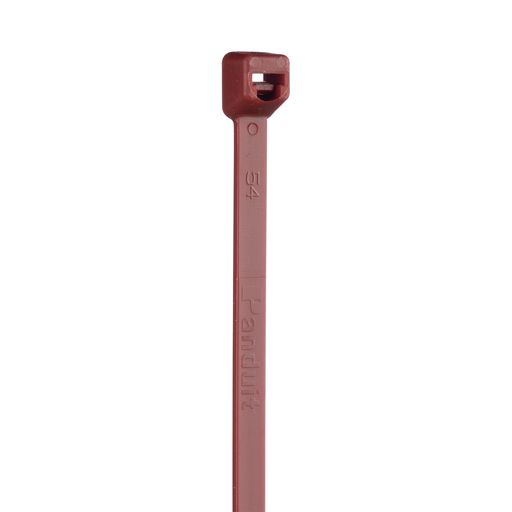

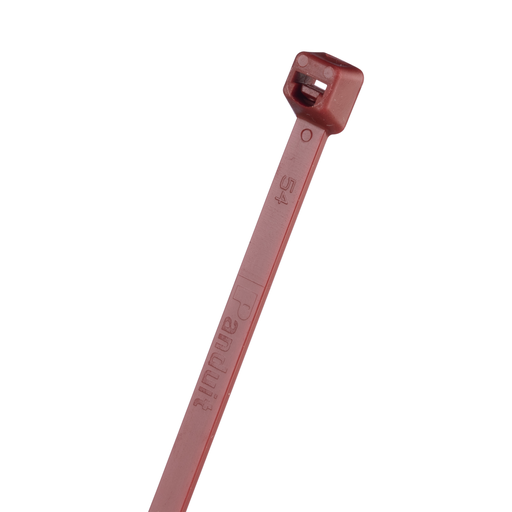

Product image for Panduit PLT1M-C702Y Cable Tie, 4.0"L (102mm), Miniature, Halar, Maroon
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit PLT1M-C702Y Cable Tie, 4.0"L (102mm), Miniature, Halar, Maroon

Manufacturer: PANDUIT | Catalog # PLT1M-C702Y | Codale Part # 4172587
$198.17/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Panduit PLT1M-C702Y Locking Cable Ties are suitable for use in plenum or air handling spaces. With low smoke density and an excellent flammability rating of UL 94V-0, they are an accepted solution for bundling qualified cable without conduit in air handling space applications. For indoor or outdoor use with greater resistance to damage caused by ultraviolet light. Miniature cross section, 4.0. (102mm) length. Made of HALAR, a distinctive maroon color, and come in packages of 100.

Technical Information

Applications
High Temperature
Body Thickness
0.043 in
Body Width
0.098 in
Bundle Diameter
0.87 In.
Material
HALAR Fluoropolymer
Max Operating Temperature
125 degrees C
Min Operating Temperature
-60 degrees C
Tensile Strength
80 lb
Type
Premium Cable Tie

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983447350
Color
Maroon
Environment
Plenum
Product UPC
07498344735
Weight
0.1100 lb

Dimensions

Length
4 Inch
Overall Length
4 in
Thickness
0.05
Width
0.18 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
Prop 65
  • No
