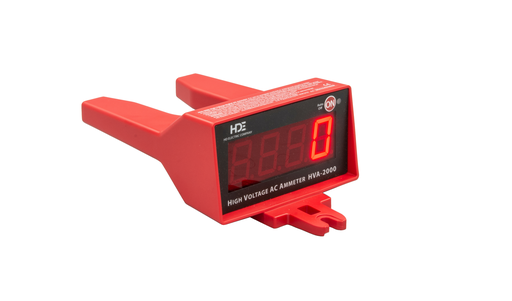

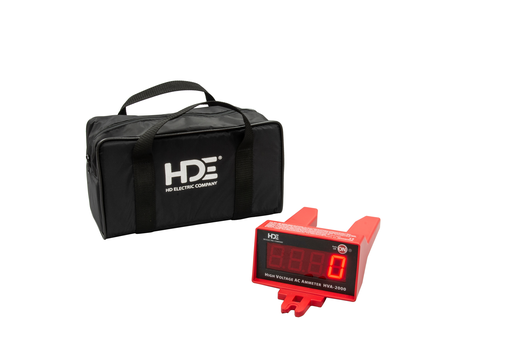

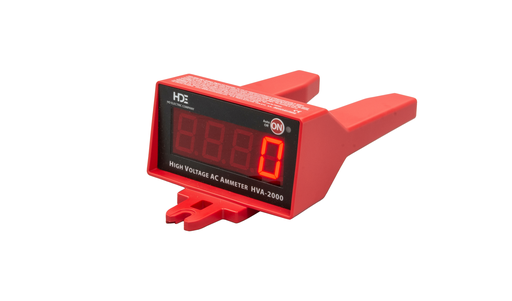

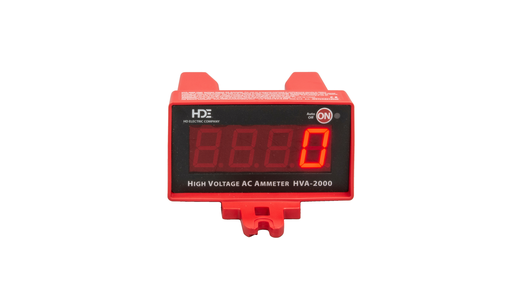

GRN HVA-2000 HVA HIGH VOLTAGE DIG A

Manufacturer: Greenlee | Catalog # HVA-2000 | Codale Part # 4172982
$8,032.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground. Stores the last 4 readings. Dual measurement modes, peak hold and real time. Takes spot-load checks with ease. Verifies phases are balanced. Versatile for overhead and underground applications. Compact, lightweight design

Technical Information

Accuracy
50-60Hz - 110A 1% +/-2 counts, 11100A 1% +/-3 counts, 101500A 1% +/-6 counts, 5012000A 1% +/-8. 252-49Hz and 61-500Hz - 110A 2% +/-3 counts, 11100A 2% +/-4 counts, 101500A 2% +/-6 counts, 5012000A 2% +/-8 counts
Amperage
1-2000A
Applications
Ammeter
Operating Temperature
-20 to 140 degrees F, -29 to 60 degrees C
Type
High-Leverage
Voltage
0-500kV line---ground

Manufacturer Information

Brand
Greenlee
Sub Brand
HDE, V-Watch®

General Product Info

12-Digit UPC
783310628309
Product UPC
78331062830
Weight
3.5200 lb

Certifications and Compliance

Country of Origin
USA
Features
  • Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground
  • Stores the last 4 readings
  • Dual measurement modes, peak hold and real time
  • Takes spot-load checks with ease
  • Verifies phases are balanced
  • Versatile for overhead and underground applications
  • Compact, lightweight design
Application
  • Ammeter
