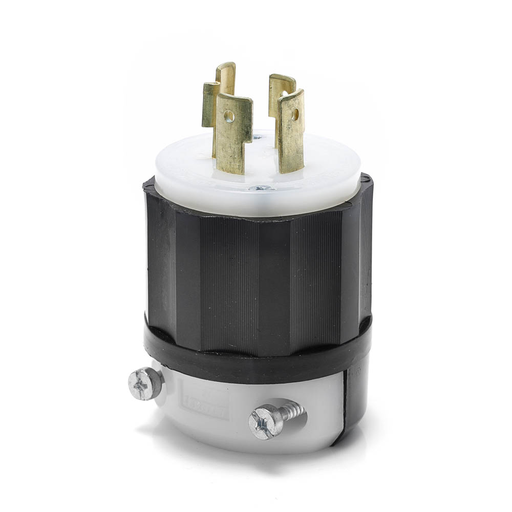

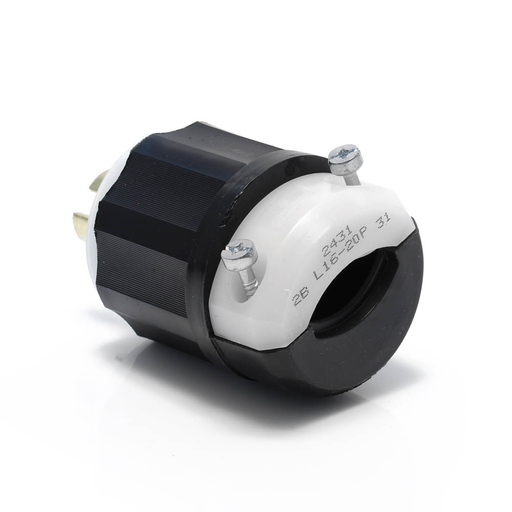

Leviton 2431 20amp 480v 3-Phase Black Locking Plug, 3-Pole 4-Wire Non-Grounding, Industrial Grade

Manufacturer: Leviton | Catalog # 2431 | Codale Part # 4174079
$68.61/ea
ea
Log in or register to view your price, purchase history, and more!
28 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 480 Volt 3-phase, NEMA L16-20P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - Black-White

Technical Information

Amperage
20 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
5 hp
Material
Nylon
Mounting Type
Cable
NEMA

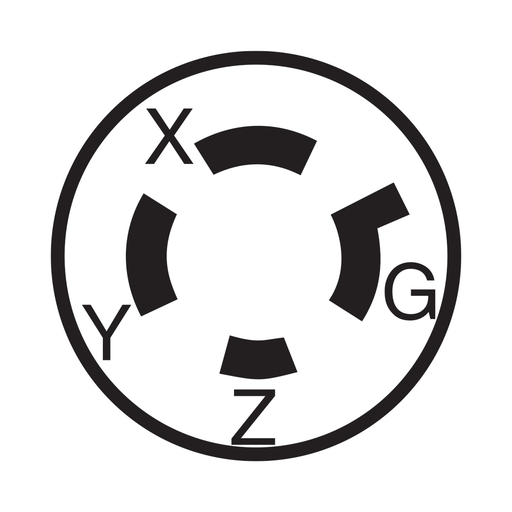

L16-20P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
2.22 Diameter X 2.70 L IN
Standard
ANSI C-73
Tc Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Industrial Grade
Voltage
480 Volt
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477808184
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) C
Product UPC
07847780818
Weight
0.3900 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • L16-20P
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
