Panduit LCAX4-14-L Pan-Lug™ Copper 1 Hole 45. Tongue Compression Lug

Manufacturer: PANDUIT | Catalog # LCAX4-14-L | Codale Part # 4174704
$851.91/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

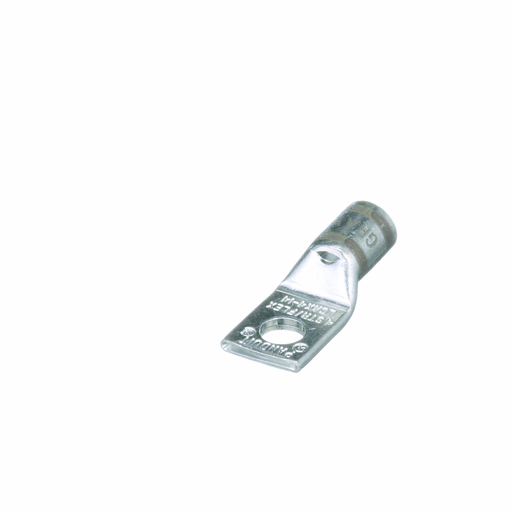

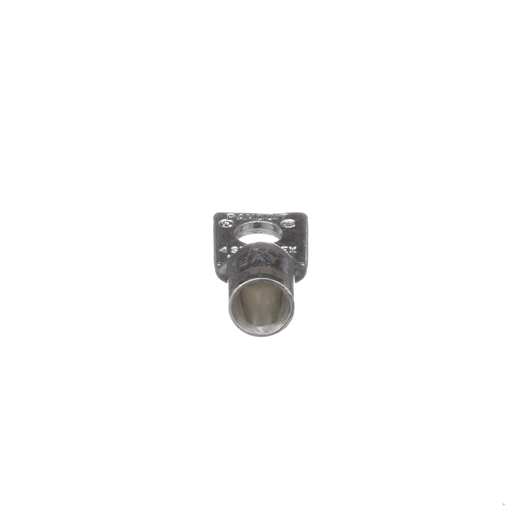

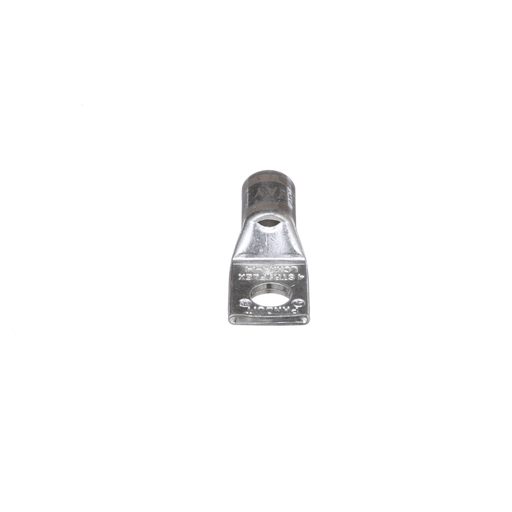

The LCAX4-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
0.53 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Gray
Material
Copper
Number of Holes
1 Hole
Size
#4 AWG Class B, C, G, H, I, K, M and #5, #4, #3 AWG DLO
Stud Size
1/4 in
Tongue Thickness
0.09 in
Tongue Type
Standard
Tongue Width
0.55 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983434015
Color
Light Gray
Product UPC
07498343401
Weight
0.9450 lb

Dimensions

Outer Diameter
0.38 in
Overall Length
1.35 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Prop 65
  • No
