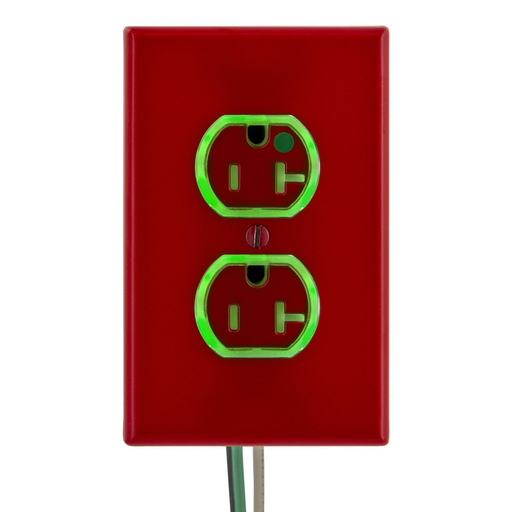

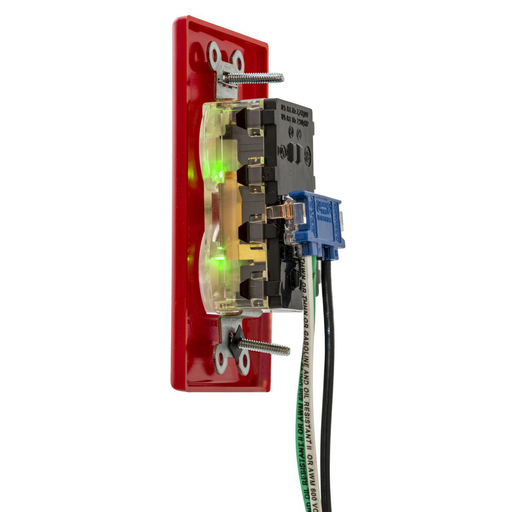

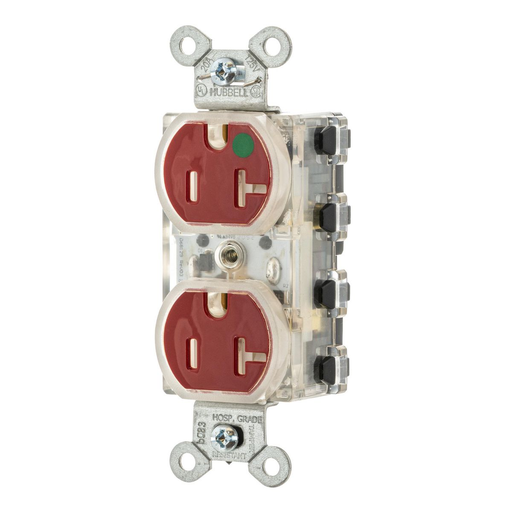

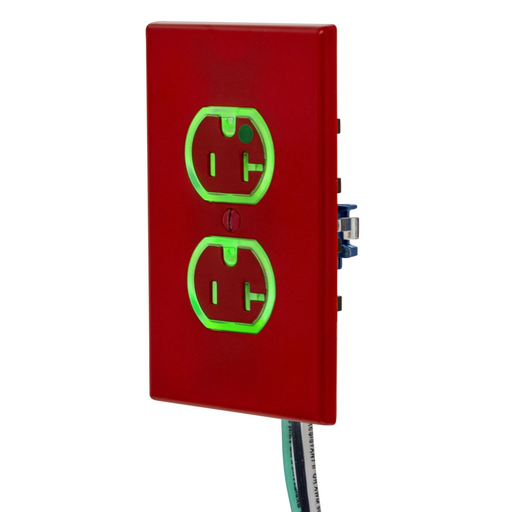

HWDK SNAP8300RLTR SNAP2CONNECT DPLX

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP8300RLTR | Codale Part # 4175468
$55.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
S-CONNECT DUP HG 20A/125V LED TR RD

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Base Material
PBT,PBT
Conductor Size
12 AWG
Contact Material
Brass
Current
20 Amp
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Horsepower
0.5 hp
Material
Polycarbonate
Number of Poles
2-2 Pole
Number of Wires
3,3
Tamper Resistant?
Yes
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585250236
Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358525023
Weight
0.2000 lb

Dimensions

Height
1.66 Inch
Length
4.16 Inch
Width
1.910 in

Certifications and Compliance

Country of Origin
China
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Quick Connect- SNAPConnect®, LED Indicator, Tamper Resistant
