Hubbell HBL29W47CONN, NEMA L5-30R, 30A 125V, YL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL29W47 | Codale Part # 4175762
$181.01/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 30A, 125V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial and Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-10 AWG
Contact Material
Nickel Plated Brass
Current
30 Amp
Grounding
Grounding
Material
Elastomer
Mounting Type
Cord

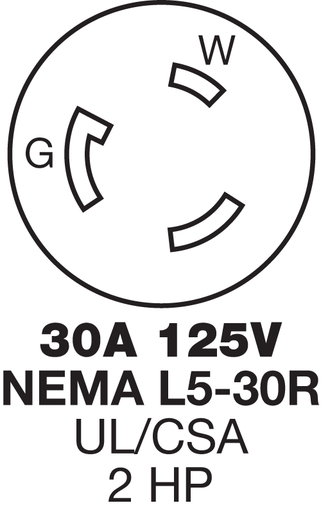

NEMA
L5-30R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-25 to 75 degrees C
Type
Watertight
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131504
Color
Yellow
Environmental Conditions
Water Tight
Product UPC
78358513150
Weight
0.2500 lb

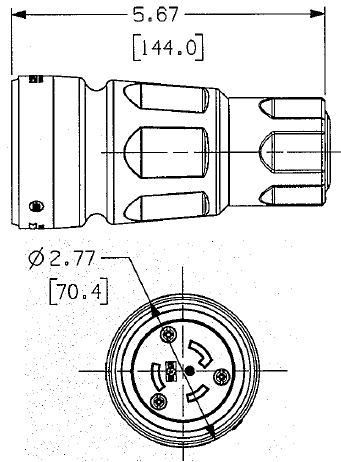

Dimensions

Height
5.67 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
