Product image for Hubbell M5200RS1 Marine PS, INS, REPL, 4P5W, 200A 600V, S1
Image thumbnail 0
Image thumbnail 1

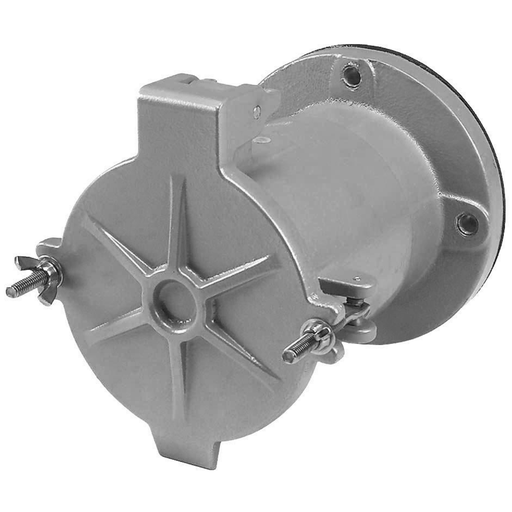

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell M5200RS1 Marine PS, INS, REPL, 4P5W, 200A 600V, S1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M5200RS1 | Codale Part # 4175870
$4,167.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Receptacle Interior, 200A 600V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Technical Information

Amperage
200 Amp
Applications
HBL5200RS1W, HBL5200CS1W
Current
200 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Poles
4 Pole
Number of Wires
4 Wire
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Corrosion Resistant,Standard Service
Tc Connection
Pressure Screw Terminals
Type
Metallic, Dockside
Voltage
250 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585161839
Color
Black
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358516183
Used With
Insulgrip® Pin and Sleeve Devices
Weight
10.7000 lb

Dimensions

Height
7.8 Inch
Length
13.3 Inch
Width
9.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
