Burndy YAV10HBOX Seamless Copper Tube Uninsulated Ring Terminal, 12-10 AWG, 8-10, 105 in L, 38 in W

Manufacturer: Hubbell-Burndy | Catalog # YAV10HBOX | Codale Part # 4178301
$295.26/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Seamless Copper Tube Uninsulated Ring Terminal, 12-10 AWG, 8-10, 1.05 in L, .38 in W.

Technical Information

Applications
For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
Cable Size
12 - 10 AWG
Connection Type
Ring Terminal
Material
Copper
Plated?
Yes
Plating Type
Tin
Stud Size
0.164-0.19 in
Type
Ring Tongue

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810532409
Color
Black,White
Product UPC
78181053240
Weight
0.0070 lb

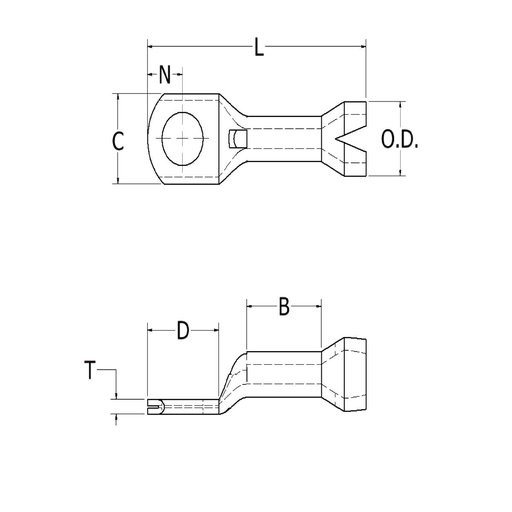

Dimensions

Height
0.21 Inch
Hole Size
0.20 in
Length
1.05 Inch
Overall Length
27 mm
Width
0.38 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
  • Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
  • Double thick tongue structurally a very strong terminal tongue
  • Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
  • Internally bevelled barrel for easy cable entry, especially for flexible conductors
  • Inspection hole provides easy visual check for proper conductor insertion
  • Electro-tin plated for a long lasting durable corrosion resistance
