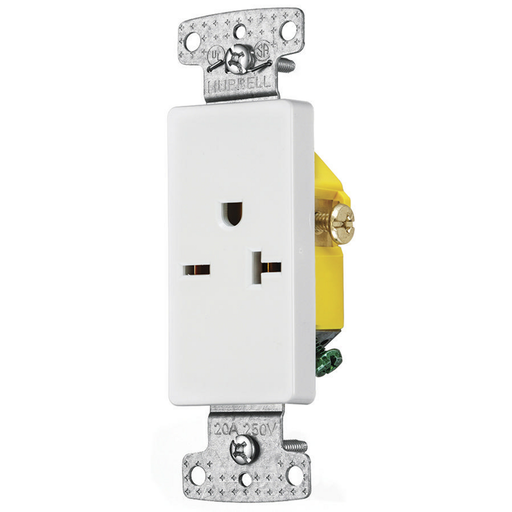

Hubbell RRD205W RESI SGL Receptacle, 20A 250V, S GRND, DEC, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RRD205W | Codale Part # 4179001
$22.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Decorator Single, 20A 250V, 2-Pole 3- Wire Grounding, 6-20R, White

Technical Information

Amperage
20 Amp
Applications
Residential Receptacle
Conductor Size
14-12 AWG
Connection Type
Side Wired
Current
20 Amp
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw
NEMA
6-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
ANSI C-73
Tc Connection
Push-In and Side Wired
Type
Decorator
Voltage
250 Volt
Wattage
2500 Watt
Wire Size
14-12

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Trade-Select Straight Blade

General Product Info

12-Digit UPC
883778300752
Color
White
Environmental Conditions
Indoor Only
Product UPC
88377830075
Weight
0.2000 lb

Dimensions

Height
1 Inch
Length
4.4 Inch
Width
1.700 in

Certifications and Compliance

Country of Origin
China
Features
  • Residential Grade
  • Receptacles
  • Decorator Single
  • Self Grounding
