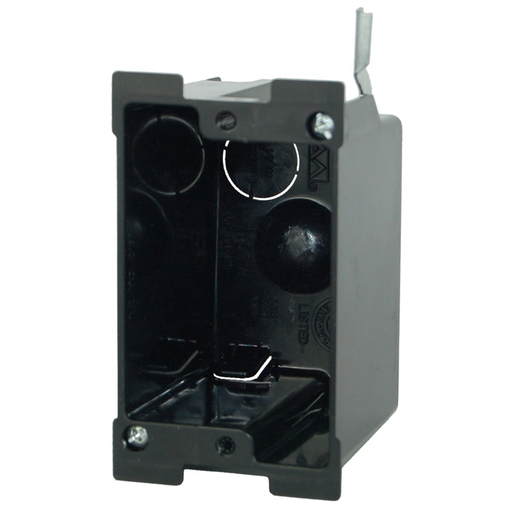

Product image for Allied Moulded Products P-116OW 2-5/8 x 2-3/8 x 3-11/16 Inch 1-Gang PVC Switch/Receptacle Outlet Box
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Allied Moulded Products P-116OW 2-5/8 x 2-3/8 x 3-11/16 Inch 1-Gang PVC Switch/Receptacle Outlet Box

Manufacturer: Allied Moulded Products | Catalog # P-116OW | Codale Part # 4179412
$5.96/ea
ea
Log in or register to view your price, purchase history, and more!
258 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet
16.0 Cu. In. Single gang electrical box for use with nonmeatllic sheathed cable - Molded-in spline device holes, rectangular exterior for easy cut-in - Old work residential construction 2 HR fire resistive walls - PVC - Thermoplastic - Size: D=2 5/8", W=2 3/8", H=3 11/16" - Mount with Metal wing brackets/nonmetal ears wall compression

Technical Information

Applications
Old work residential construction 2 HR fire resistive walls
Cable Entry
Four molded-in Speed Klamps with one 1/2" knockout
Insulation Type
Nonconductive Nonmetallic
Material
PVC
Mounting Type
Metal Wing Brackets/nonmetal Ears Wall Compression
Number of Gangs
1 Gang
Size
D=2 5/8", W=2 3/8", H=3 11/16"
Standard
UL 514 C
Type
Single gang electrical box for use with nonmetallic sheathed cable

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
FLEXBOX

General Product Info

12-Digit UPC
085339249153
Color
Black
Construction
Injection Molded
Product UPC
08533924915
Weight
0.1800 lb

Dimensions

Depth
2-5/8 Inch
Height
3 Inch
Width
2-5/16 in

Certifications and Compliance

Buy American Compliant
Y
Fire Test of Building Construction Materials
  • Note: Products must also be certified to: ANSI / UL 514C
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
Fire Resistance Classification in Wall Assemblies 2-Hours or less
  • Shall be separated by a horizontal distance of not less than 24 inches
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
  • Distance between boxes must be 4- feet from one another
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Old work residential construction 2 HR fire resistive walls
  • Wall Box
  • Molded-in spline device holes, rectangular exterior for easy cut-in
  • ANSI / UL 514C: File No. E30594
