ALLIED PC223OWG 3-1/2 OW RND BOX 21

Manufacturer: Allied Moulded Products | Catalog # PC223OWG | Codale Part # 4179415
$11.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet

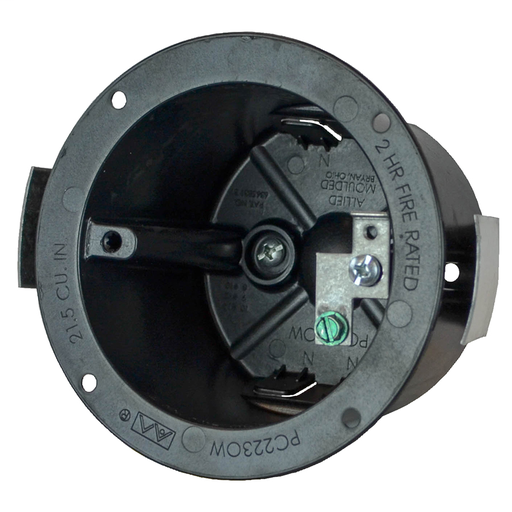

21.5 Cu. In. 3.5" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, round exterior for easy cut-in, ground strap - Old work residential construction 2 HR fire resistive Ceilings - Polycarbonate - Thermoplastic box with galvanized snap bracket - Size: Depth=2 13/16", Dia=3 1/2" - Mount with Snap bracket/box flange wall compression

Technical Information

Applications
Old work residential construction 2HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weiging six pounds or less.
Cable Entry
Four molded-in Speed Klamps
Insulation Type
Non-Conductive,Non-Metallic
Material
Polycarbonate
Mounting Type
Snap Bracket/box Flange Wall Compression
Size
Depth=2 13/16", Dia=3 1/2"
Standard
UL 514 C
Type
3.5" dia. round fixture support box for use with nonmetallic sheathed cable

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
FLEXBOX

General Product Info

12-Digit UPC
085339980292
Color
Black
Construction
Injection molded
Product UPC
08533998029

Dimensions

Depth
2-13/16 Inch
Width
3 in

Certifications and Compliance

Buy American Compliant
Y
  • Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.
Additional Materials
  • Galvanized steel brackets and plated carbon steel fasteners
  • Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw
  • Round Ceiling Box
  • ANSI / UL 514C: File No. E30594
  • Machine tapped fixture holes, round exterior for easy cut-in, ground strap
Fire Test of Building Construction Materials
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 inches
