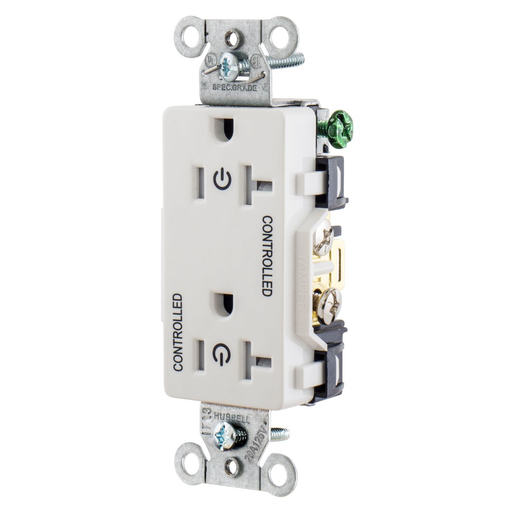

Hubbell DR20C2WHI2/2 CONTROLLED 20A 125V, B/S, DECO, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR20C2WHI | Codale Part # 4180877
$10.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Decorator Duplex, Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, White

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon,Nylon
Conductor Size
14-10 AWG
Contact Material
Brass
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grade
Commercial
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Plated Steel
Size
1.32 in x 0.83 in x 3.28 in
Standard
CSA,E2186,UL
Style
Style Line Decorator
Tc Connection
Spade, 2 Terminals
Type
Network Address Translation (NAT) Device
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585551555
Color
White
Environmental Conditions
Indoor Only
Product Series
Controlled
Product UPC
78358555155
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
Features
  • Permanently marked with universal power symbol and the word \"CONTROLLED\" to visually identify receptacles used in automatic energy management systems
  • Markings can be read regardless of mounting orientation
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load Logic control's or any available energy management system
  • Self Grounding
