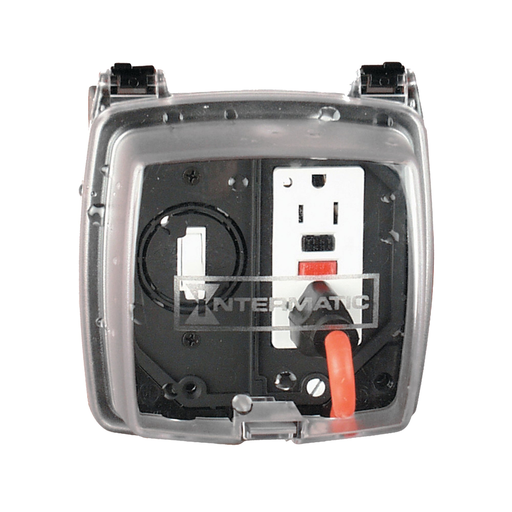

Intermatic WP1220C 2-Gang Receptacle In-Use Cover, 2-1/4" Deep - Clear

Manufacturer: Intermatic | Catalog # WP1220C | Codale Part # 418113
$25.16/ea
ea
Log in or register to view your price, purchase history, and more!
306 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Gang Type
Double
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Polycarbonate
Mounting Configuration
Mounting screws
Mounting Type
Vertical, Screw
Number of Gangs
2 Gang
Number of Outlets
2
Size
2-1/4 DEPTH IN, 57.15 DEPTH MM
Standard
2008 NEC Article 406.8,UL Certified For Type 3R,UL/CSA Cold Impact Testing
Type
2-Unit, Rectangular, Standard, Receptacle

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275072695
Color
Clear
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Finish
Gloss
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827507269
Shape
Rectangle
Used With
Commercial, home
Weight
0.5400 lb

Dimensions

Depth
57 mm
Height
5-1/2 Inch
Length
139.7 mm
Warranty Length
1 yr
Width
127 mm

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick neoprene gasket with slits for mounting screws
  • Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited
  • NA
