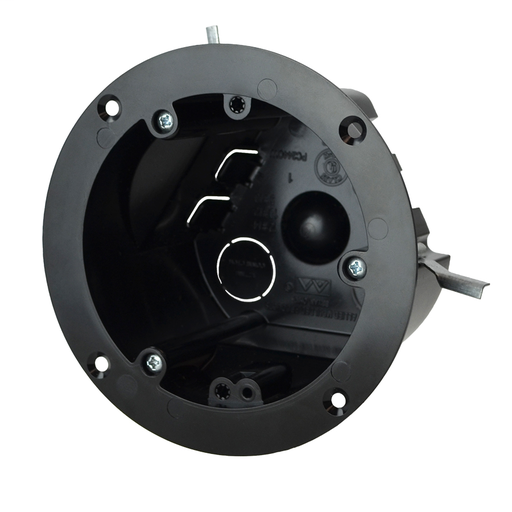

Allied Moulded Products PC244OW 24.5 cubic inch 4 Inch Diameter Old Work Wing Bracket Fixture Support Box

Manufacturer: Allied Moulded Products | Catalog # PC244OW | Codale Part # 4181427
$8.22/ea
ea
Log in or register to view your price, purchase history, and more!
152 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet
24.5 Cu. In. 4" dia. round wall box for use with nonmetallic sheathed cable - Machine tapped fixture holes, round exterior for easy cut-in - Old work residential construction - Polycarbonate - Thermoplastic box with galvanized wing bracket - Size: Depth=3", Dia=4" - Mount with wing bracket/box flange wall compression

Technical Information

Applications
Old work residential construction 2HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weiging six pounds or less.
Cable Entry
Four molded-in Speed Klamps
Insulation Type
Nonconductive Nonmetallic
Material
Polycarbonate
Mounting Type
Wing Bracket/box Flange Wall Compression
Size
Depth=3", Dia=4"
Type
4" dia. round wall box for use with nonmetallic sheathed cable

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
FLEXBOX

General Product Info

12-Digit UPC
085339983118
Color
Black
Construction
Injection Molded
Product UPC
08533998311
Weight
0.2400 lb

Dimensions

Depth
3 Inch
Width
4 in

Certifications and Compliance

Buy American Compliant
Y
  • Machine tapped fixture holes, round exterior for easy cut-in
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
  • Distance between boxes in adjacent cavities may be reduced to 5 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Fire Test of Building Construction Materials
  • Note: Products must also be certified to: ANSI / UL 514C
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Round Ceiling Box
  • Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.
  • 9305-SK
  • 9338-ESK
  • PC223OW
  • SB-CB
  • PC244OWG
  • ANSI / UL 514C: File No. E30594
