Panduit LCAN350-12-X Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug

Manufacturer: PANDUIT | Catalog # LCAN350-12-X | Codale Part # 4181859
$5,052.94 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Product Catalog Page Installation / Instruction Manual Primary Spec Sheet

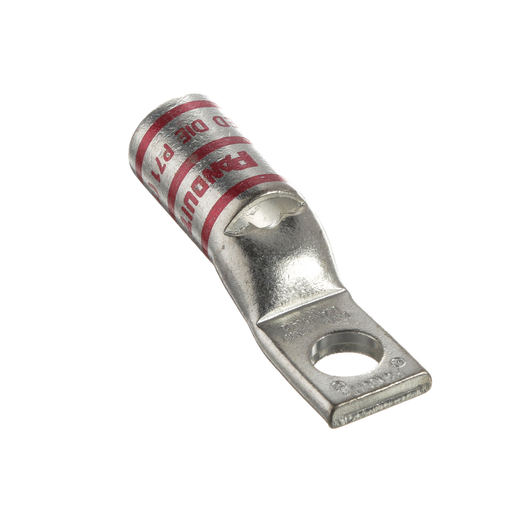

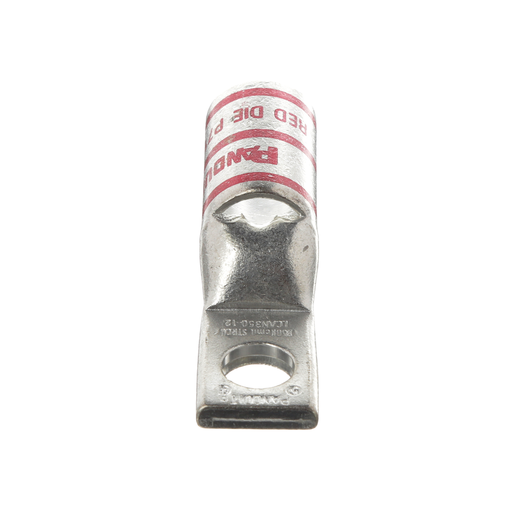

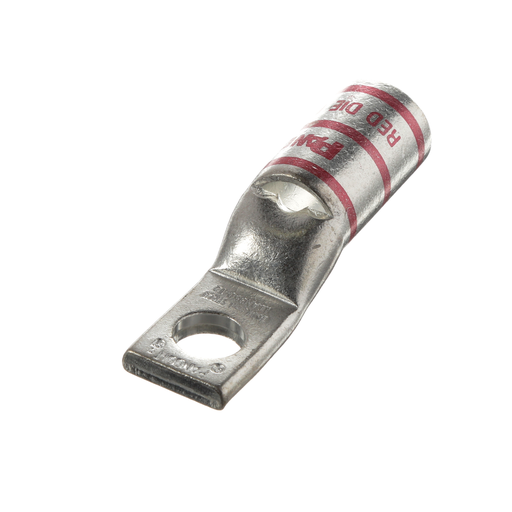

The LCAN350-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Technical Information

Angle
Straight
Barrel Length
1.44 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Red
Material
Copper
Number of Holes
1 Hole
Size
350 kcmil Code
Standard
ANSI C-73
Stud Size
1/2 in
Tongue Thickness
0.21 in
Tongue Type
Narrow
Tongue Width
0.88 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983603466
Color
Amber,Green,Red,White
Product UPC
07498360346
Weight
1.9000 lb

Dimensions

Outer Diameter
0.88 in
Overall Length
3.12 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
