Product image for Burndy KVSU40 Tin-plated copper alloy connector with tin plated silicon bronze hardware Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque: 500 in -lb,wrench size:3/4 cross flats
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy KVSU40 Tin-plated copper alloy connector with tin plated silicon bronze hardware Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque: 500 in -lb,wrench size:3/4 cross flats

Manufacturer: Hubbell-Burndy | Catalog # KVSU40 | Codale Part # 4181899
$144.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Tin-plated copper alloy connector with tin plated silicon bronze hardware. Spacer bar separates dissimilar conductors and provides long contact length.

Technical Information

Applications
For All Combinations of Copper, Aluminum, ACSR, AAAC and 5005, Heavy Duty Connections
Bolt Size
1/2 IN
Material
Copper
Plated?
Yes
Plating Type
Tin
Type
KVSU, Universal

Manufacturer Information

Brand
Burndy
Sub Brand
OKLIP™

General Product Info

12-Digit UPC
781810084502
Finish
Tin Plated
Product UPC
78181008450
Weight
1.3400 lb

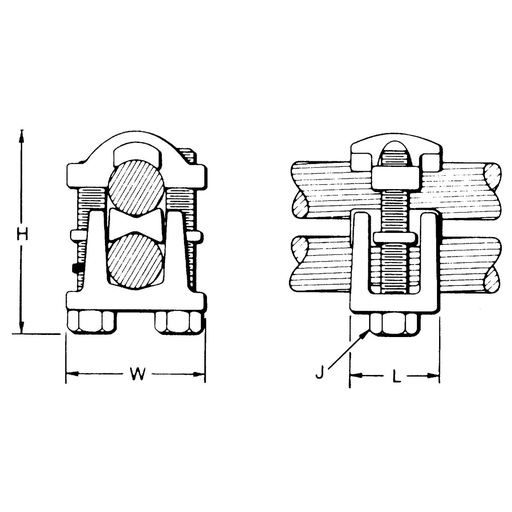

Dimensions

Height
3.53 Inch
Length
1.62 Inch
Overall Length
41 mm
Width
2.50 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • Compact, tin-plated high strength copper alloy connector with spacer and tin-plated silicon bronze hardware
  • Recommended for heavy duty connections
  • Spacer separates dissimilar conductors and provides long contact length
  • Neoprene ring prevents loss of shorter bolt during installation
  • Longer peened bolt permits swivel action for easier installation
