Product image for Burndy YAV27L2NTCFX 3/0 Flex G,H,I,K,M,DLO, 3/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Orange Color Code, 14 Die Index
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy YAV27L2NTCFX 3/0 Flex G,H,I,K,M,DLO, 3/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Orange Color Code, 14 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YAV27L2NTCFX | Codale Part # 4182898
$18.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

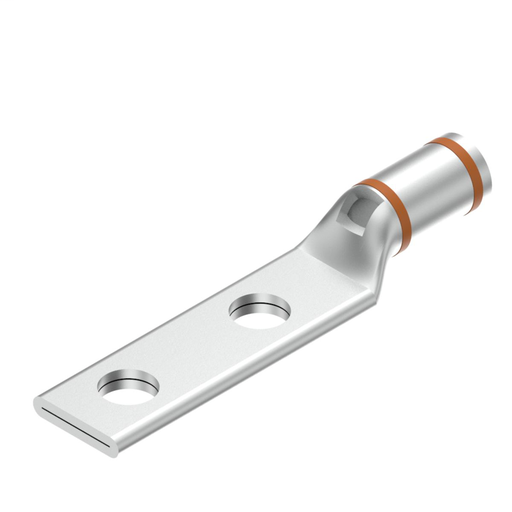

Copper Compression Lug, 2 Hole w/ Inspection window, 3/0 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated

Technical Information

Color Coding
Orange
Conductor Material
Copper
Conductor Size
3/0 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin

Manufacturer Information

Brand
Burndy

General Product Info

12-Digit UPC
781810022344
Finish
Tin Plated
Product UPC
78181002234

Dimensions

Hole Size
14 mm
Length
4.54 Inch
Overall Length
4.54 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Compare
