Hubbell HBL7962 50 Amp 12/250 Volt 3-Pole 3-Wire NEMA 10-50R Black Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7962 | Codale Part # 4183536
$59.15/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 50A 125/250V, 10-50R, Black , Single Pack.

Technical Information

Amperage
50 Amp
Applications
Heavy Duty
Conductor Size
10-4 AWG
Connection Type
Back and Side Wire
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
10-50R
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire Non-Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015125
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358501512
Weight
0.5 lb

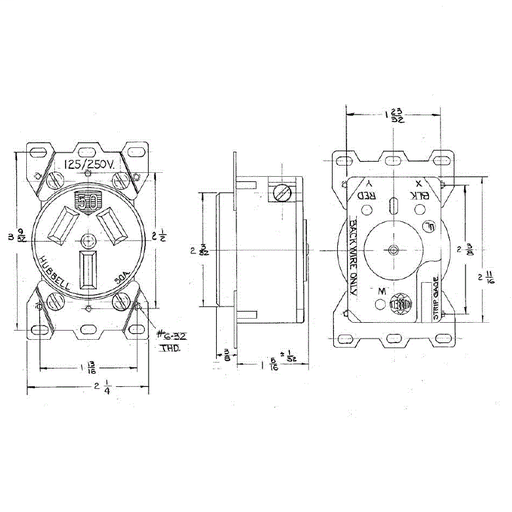

Dimensions

Height
2.418 Inch
Length
2-1/2 Inch
Width
1.69 in

Certifications and Compliance

Country of Origin
USA
Features
  • Sequenced contacts assure protection
  • Catalog number, ratings and certifications molded in face
  • One piece design power and ground contacts
  • Standard
