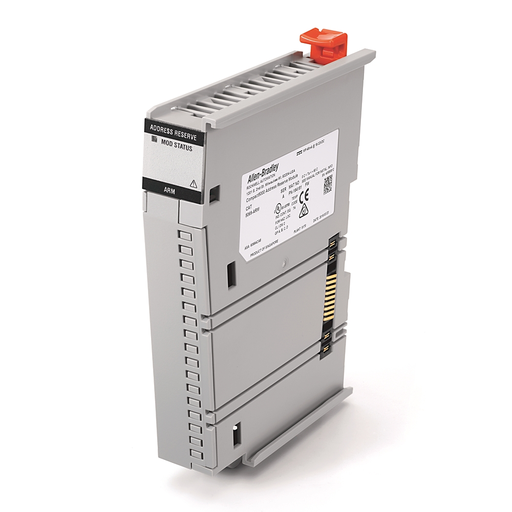

Allen Bradley 5069-ARM Compact 5000 Address Reserve Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 5069-ARM | Codale Part # 4184206
$235.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compact 5000 Address Reserve Module

Technical Information

Amperage
45 mA at 18-32 VDC (MOD Power), 9.55 Amp at 18-32 VDC MOD Power (Pass-through)
Mounting Type
DIN Rail
Operating Temperature
140 degrees F
Power Consumption
1 W
Standard
CCC,CE,CUL,KC,MARINE,RCM,UL
Temperature Rating
0 - 60 degrees C
Type
Address Reserve Module

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Compact 5000 I/O

General Product Info

12-Digit UPC
885630529998
Environmental Conditions
-40 to 85 C Storage Temperature, 5 - 95% Non-Condensing Relative Humidity, 5 g at 10 - 500 Hz Vibration, 30 g Shock
Product UPC
88563052999
Weight
0.5500 lb

Dimensions

Depth
4.15 Inch
Height
5.69 Inch
Width
0.87 in
Features
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Support up to 31 I/O modules per controller or adapter
  • Provide faster safety reaction time
  • Provide improved status indicators to monitor and troubleshoot systems
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Provide high-speed backplane communications for faster transfer rates
  • Use the slim 5069-AENTR for small space requirements
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Rated up to SIL3/PLe
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Support up to 31 I/O modules
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Provide enhanced diagnostics information
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
