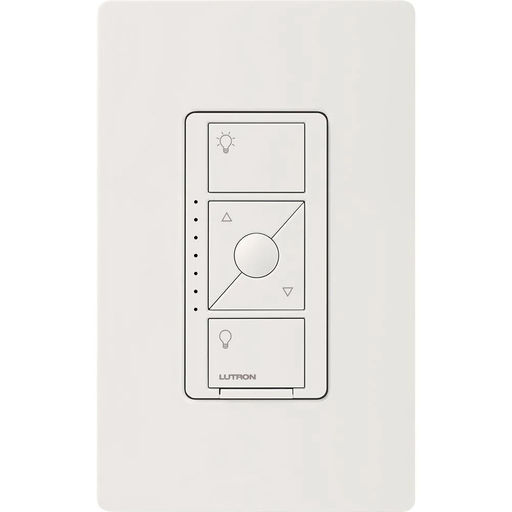

Lutron PD-5NE-WH CASETA PHASE SELECTABLE IN WHITE

Manufacturer: Lutron Electronics | Catalog # PD-5NE-WH | Codale Part # 4185207
$165.59/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Caseta Wireless 3-way/single-pole RF dimmer for LED, ELV, MLV, or Halogen lights in white

Technical Information

Actuator
Push-button
Applications
Lighting
Connection Type
Wire Leads,Wire Leads
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
Standard
CUL,FCC,ICC,IFTEL,NOM,UL
Tc Connection
Wire Leads
Type
Multi-location/single-pole,Wireless In-wall Dimmer
Voltage
120 Volt
Wattage
500 Watt

Manufacturer Information

Brand
Caseta
Sub Brand
Caseta Wireless

General Product Info

12-Digit UPC
784276217699
Color
White
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
Product UPC
78427621769
Weight
1.1000 lb

Certifications and Compliance

Country of Origin
Mexico
Features
  • Includes: One (1) Caseta Wireless ELV+ dimmer switch; Gloss finish
  • Works with up to 250W of dimmable LED, 500W of incandescent/halogen or ELV, or 400W MLV; Phase-Select available
  • Neutral Required; 120V
  • Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-WALL-WH-L01 sold separately); Cannot be wired to existing 3-way switches
  • Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more
  • Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
  • Preset button allows you to turn your lights on to your preferred predetermined level
  • Pair up to ten (10) Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed)
  • Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH, required for phone and voice assistant control)
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Controls 250 W LED (screw-base), 500 W incandescent/halogen, 400 VA (300 W) magnetic low-voltage, 500 W electronic low-voltage, 400 W Hi-lume 1 percent 2-wire LED driver, or 3.3 A Tu-Wire fluorescent ballast loads
  • Simple, intuitive design with on, off and raise/lower buttons
  • Provides true dimming from each location with Pico wireless remotes.
Standards and Certifications
  • CULUS
  • NOM
  • FCC
  • UL
  • cUL
  • ICC
  • IFTEL
