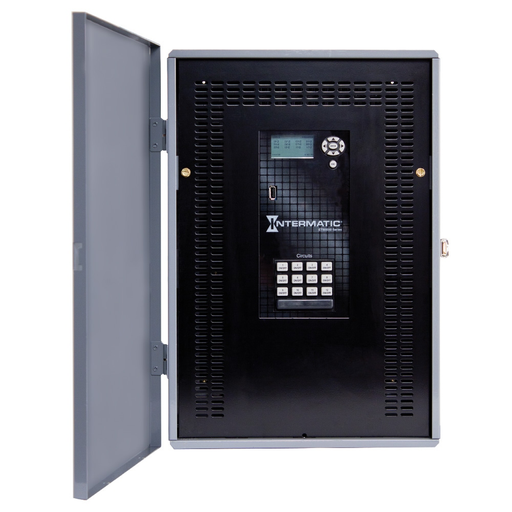

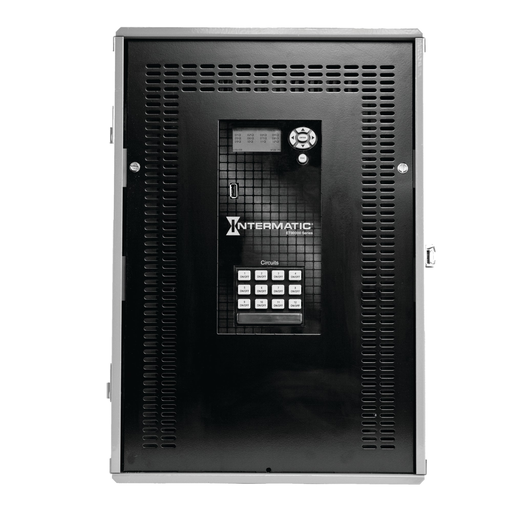

Intermatic ET91215CR 12 CKT TIME SW/OUTDOOR W/ETH

Manufacturer: Intermatic | Catalog # ET91215CR | Codale Part # 4185727
$5,507.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates.

Technical Information

Action
SPDT
Amperage
20 Amp
Applications
General Purpose, Lighting, HVACR
Connection Type
Wire Lead
Contact Configuration
1 NO, 1 NC
Contact Rating
30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General Purpose and Resistive NC), 20 AMP @ 120 - 277 VAC (Ballast NO), 3 AMP @ 120 - 277 VAC (Ballast NC), 5 AMP @ 12 - 240 VAC (Tungsten NO Only)
Enclosure
Type 3R Steel
Frequency
50/60 Hz
Input Voltage
208-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
12
Number of Poles
1 Pole
Operating Temperature
-40 to 120 degrees F, -40 to 50 degrees C
Power Consumption
50 W
Size
17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM
Standard
CCSAus Certified,CULus Listed,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
12xSPDT,6xDPDT
Tc Connection
Wire Lead
Type
Astronomic, Electronic
Voltage
120-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275124936
Color
Black
Product UPC
07827512493

Dimensions

Depth
5.4 Inch
Height
17.9 Inch
Warranty Length
3 yr
Width
12.7 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
  • Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware can be upgraded in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
