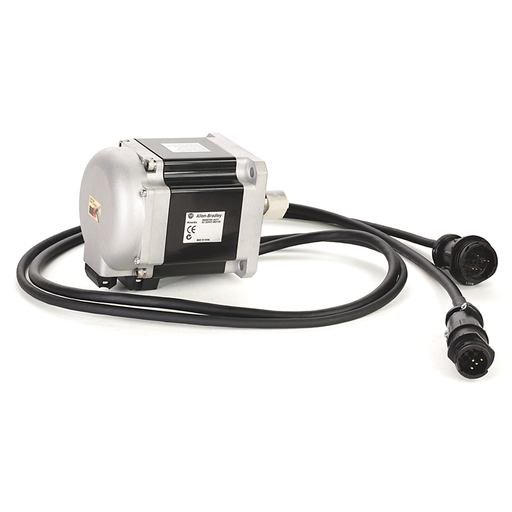

Allen Bradley TL-A2530P-BJ32AA TL-Series 240V AC Rotary Servo Motor

Manufacturer: Allen Bradley / Rockwell | Catalog # TL-A2530P-BJ32AA | Codale Part # 4186532
$1,060.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
TL-Series 240V AC Rotary Servo Motor

Technical Information

Applications
TL-Series
Enclosure
IP65 housing/ Shaft key/No shaft seal
Frame
25 = 90 mm (3.54 in.) or NEMA 34
Mounting Type
90 Mm Bolt Circle Metric Flange
RPM
5000 rpm
Standard
CE,KC
Type
Rotary
Voltage
230 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
TL-Series™

General Product Info

12-Digit UPC
820919236839
Product UPC
82091923683
Weight
5.7000 lb
Features
  • Single-turn and multi-turn (battery required) option with one physical feedback device
  • Tight position control with 17-bit resolution
  • Integral 24V DC brake option
  • Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
  • Rated power from 50 W to 15 kW
  • Optimized to match with drive ratings for optimum system sizing
  • Optimally designed with Kinetix® 5100 servo drive for system performance
  • 24-bit high-resolution feedback
  • UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives
  • Integral 24V brake option
  • Provides an economy solution to meet wide ranges of applications
