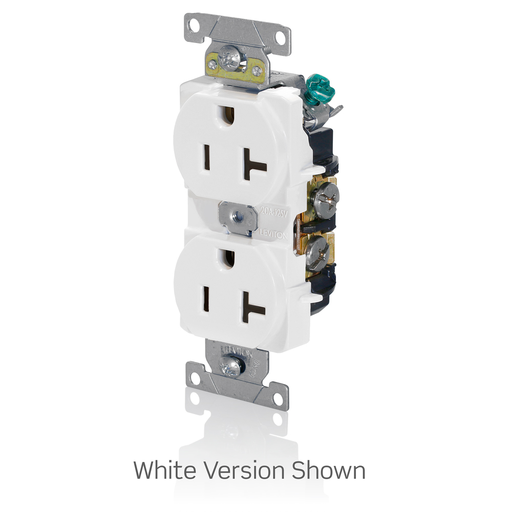

Image thumbnail 2

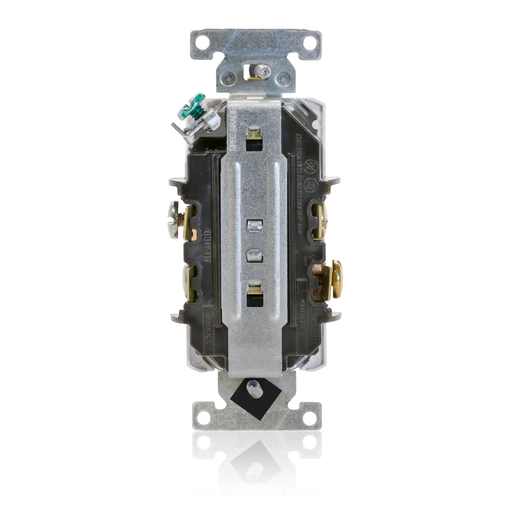

Image thumbnail 3
Image thumbnail 4
Email

Leviton 5352-GY 20 Amp 125 Volt NEMA 5-20R 2-Pole 3-Wire Heavy Duty Specification Grade Duplex Receptacle Grey

Manufacturer: Leviton | Catalog # 5352-GY | Codale Part # 4186550
$8.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Back And Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.55 W x 1.12 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 - 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477819630
Color
Gray
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847781963
Weight
0.1900 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Patents
  • MX321216
  • US8684771
