Hubbell HBL7432 Plug, MIDGET Locking ANG, ML-3P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7432 | Codale Part # 4187297
$98.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

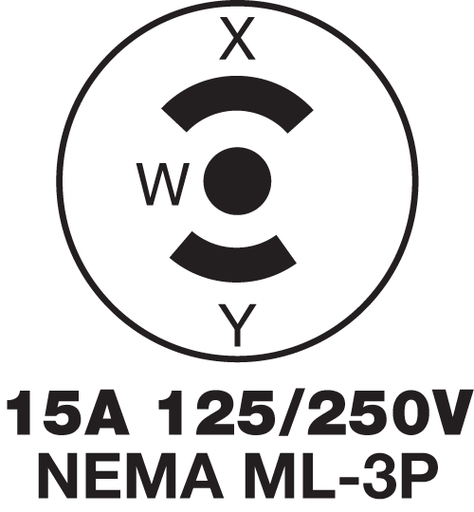

Locking Devices, Midget Twist-Lock®, Industrial, Male Plug, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black, Angled.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
18-14 AWG
Cord Type
All Listed Portables
Current
15 Amp
Material
Nylon
NEMA
ML-3P
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size

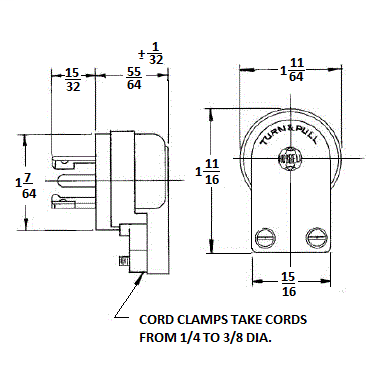

1.68 in x 1.17 in x 1.32 in
Standard
CSA C22.2 No.42,UL 498
Type
Plugs
Voltage
125/250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Floor Boxes

General Product Info

12-Digit UPC
783585237190
Color
Black
Construction
Molded
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Finish
Molded
Product UPC
78358523719
Weight
0.05 lb

Dimensions

Height
1.32 Inch
Length
1.68 Inch
Width
1.17 in

Certifications and Compliance

Country of Origin
USA
Features
  • Abuse resistant nylon housing
  • Phenolic body for high heat resistance
  • Angled body design for low profile in tight spaces
  • Totally insulated body adds extra measure of safety
  • Standard Product
