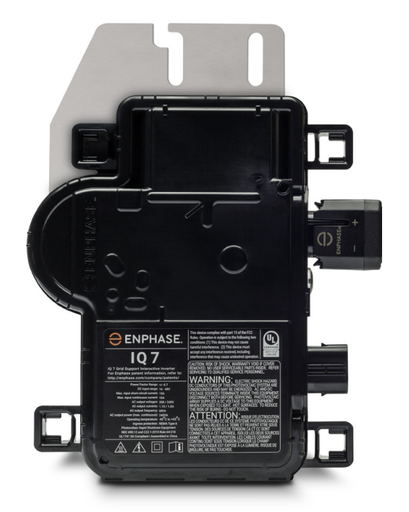

Enphase IQ7-60-2-US IQ7 Microinverter, Compatible w/ 60Cell PV Modules, 240VA Peak Power MC4 DC Connectors

Manufacturer: Enphase | Catalog # IQ7-60-2-US | Codale Part # 4187574
$198.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The smart-grid ready Enphase IQ 7 Microinverter series is built on the seventh-generation platform and achieves the highest efficiency for module-level power electronics. Its polymeric enclosure and revolutionary cabling system simplify installation.

Technical Information

Connection Type
MC4
Connector Type
MC4
Cooling Concept
Natural Convection - No Fans
Enclosure Rating
6
Enclosure Type
Class Ii Double-Insulated, Corrosion Resistant Polymeric Enclosure
Frequency
60 Hz
Max Input Voltage
48 V
Max Output Current
1.0 A
Max Output Power
240 VA
Operating Temperature
-40 To 65 degrees C
Operating Voltage
16-48 V
Power Factor
1

Manufacturer Information

Brand
Enphase Energy

General Product Info

Weight
2.38 lb
Productive and Reliable
  • Optimized For High Powered 60-Cell Modules
  • More Than A Million Hours Of Testing
  • Class Ii Double-Insulated Enclosure
  • Ul Listed
Compliance
  • Ca Rule 21 (Ul 1741-Sa)
  • Ul 62109-1, Ul1741/Ieee1547, Fcc Part 15 Class B, Ices-0003 Class B, Can/Csa-C22.2 No. 107.1-01
  • This Product Is Ul Listed As Pv Rapid Shut Down Equipment And Conforms With Nec-2014 And Nec-2017 Section 690.12 And C22.1-2015 Rule 64-218 Rapid Shutdown Of Pv Systems, For Ac And Dc Conductors, When Installed According ManufacturerS Instructions.
Overview
  • The High-Powered Smart Grid-Ready Enphase Iq 7 Micro™ And Enphase Iq 7+ Micro™ Dramatically Simplify The Installation Process While Achieving The Highest System Efficiency.
  • Part Of The Enphase Iq System, The Iq 7 And Iq 7+ Microinverters Integrate With The Enphase Iq Envoy™, Enphase Iq Battery™, And The Enphase Enlighten™ Monitoring And Analysis Software.
  • Iq Series Microinverters Extend The Reliability Standards Set Forth By Previous Generations And Undergo Over A Million Hours Of Power-On Testing, Enabling Enphase To Provide An Industry-Leading Warranty Of Up To 25 Years.
Notes
  • 1. No Enforced Dc/Ac Ratio. See The Compatibility Calculator At Https://Enphase.Com/En-Us/Support/Module-Compatibility.
  • 2. Nominal Voltage Range Can Be Extended Beyond Nominal If Required By The Utility.
  • 3. Limits May Vary. Refer To Local Requirements To Define The Number Of Microinverters Per Branch In Your Area.
Easy to Install
  • Lightweight And Simple
  • Faster Installation With Improved Two-Wire Cabling
  • Built-In Rapid Shutdown Compliant (Nec 2014 & 2017)
Smart Grid Ready
  • Complies With Fixed Power Factor, Voltage And Frequency Ride-Through Requirements
  • Remotely Updates To Respond To Changing Grid Requirements
  • Configurable For Varying Grid Profiles
  • Meets Ca Rule (Ul 1741-Sa)
