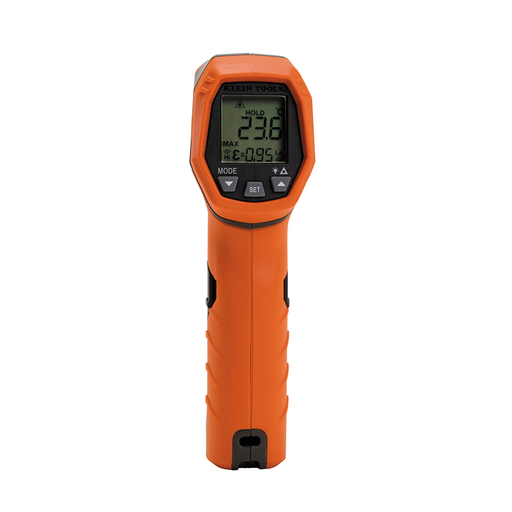

Klein IR5 12:1 Dual-Laser Infrared Thermometer

Manufacturer: Klein Tools | Catalog # IR5 | Codale Part # 4188147
$74.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight 12:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the two laser spots on the surface of the object being measured approximates the diamater of the circular measurement area from which the infrared sensor is collecting data.

Technical Information

Accuracy
+/-4 F or +/-2 %, Accuracy Below Freezing is +/-4 F Plus 0.2 Per degree Below 32 F
Applications
Accurate Targeting and Temperature Measurement
Battery Type
1 X 9V
Display Type
Digital Backlit
Number of Rows
3
Response Time
0.25 sec
Type
Dual

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644690303
Product UPC
09264469030
Weight
0.615 lb

Dimensions

Depth
6.83 Inch
Height
4.53 Inch
Length
6.82 Inch
Overall Length
6.82 in
Width
1.84 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features
  • Optical Resolution (Distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6-feet (2 m)
  • Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
  • Not a medical device; thermometer is NOT intended for use on people or animals.
  • Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
  • Includes custom pouch and batteries
  • Adjustable emissivity
  • Soft-touch, over-mold housing
  • For ambient temperatures above freezing, the accuracy is +/- 4-degrees F or +/- 2-percent; Accuracy below freezing is +/- 4-degrees F plus 0.2 degrees per degree below 32-degrees F
  • Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002
  • Several Calculation Modes to Facilitate Different Temperature Measurement Applications
Warnings
  • Thermometer is NOT intended for use on people or animals.
  • Do not direct laser beam into eyes, as this can cause permanent eye damage.
  • Do not use the instrument if the case is damaged in any way.
  • Replace the battery as soon as the low battery indicator appears.
  • Avoid using the instrument around strong electromagnetic fields.
