A-B 442G-MABRB-UR-E0P49 PTR Right E

Manufacturer: Allen Bradley / Rockwell | Catalog # 442G-MABRB-UR-E0P49 | Codale Part # 4189187
$2,769.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

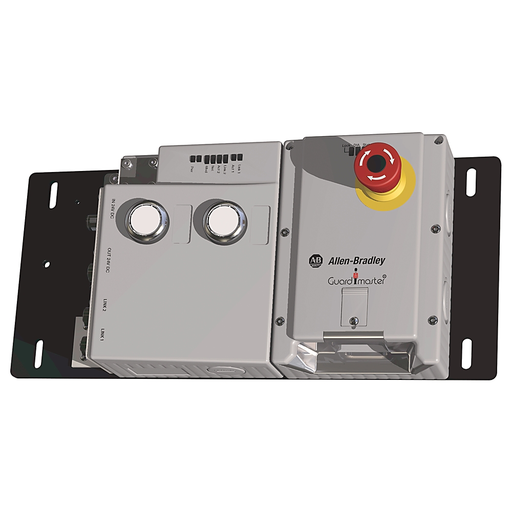

PTR Right Ethernet Lock Module

Technical Information

Amperage
200 mA
Conductor Size
26 AWG
Connection Type
(2) M12 Cable
Contact Configuration
CIP Safety over EtherNet/IP
Material
Plastic
Standard
CCC,CE,CUL,KC,RCM,UL
Tc Connection
M12, D-coded
Temperature Rating
-20 degrees C to 55 degrees C
Type
Right-Hand Guard Door, Power to Release
Voltage
24 Volt
Wattage
250 mW
Wire Size
26 AWG

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Guardmaster®

General Product Info

12-Digit UPC
887172996634
Product UPC
88717299663
Used With
Guardmaster 442G Multifunctional Access Box
Weight
8.0100 lb
Features
  • Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
  • Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking
  • Includes a CIP Safety over EtherNet/IP version which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment
