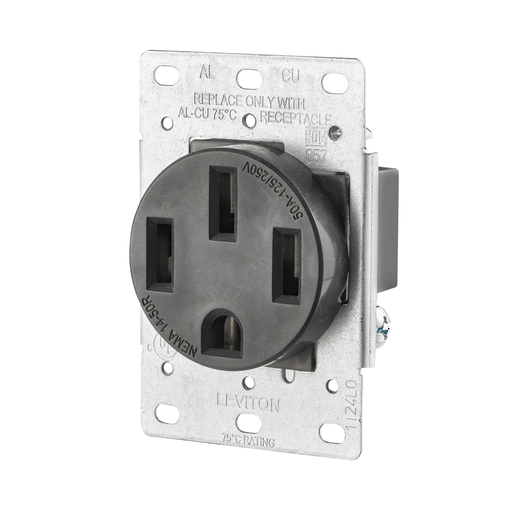

LEV 279-S00 EB SHLW REC SHL 3PO4WI

Manufacturer: Leviton | Catalog # 279-S00 | Codale Part # 4190321
$16.46/ea
ea
Log in or register to view your price, purchase history, and more!
145 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Built of durable thermoplastic, Leviton Power Receptacles . come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton.s wide range of 2.15.- diameter wallplates and mounting hardware is included.

Technical Information

Amperage
50 Amp
ANSI Base
ANSI C-73
Applications
Industrial
Body Material
Polypropylene
Dielectric
2000 V
Face Material
Polypropylene
Flamability Class
Rated V-2 Per UL 94
Grade
Industrial
Grounding
Grounding
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
60 degrees C
Standard
CSA C22.2 No. 42 (152105),NOM Certified (057),RoHS Complaint,UL498 (E13399)
Temperature Rise
150 %
Torque
40 lb-in
Type
Shallow, 1-Outlet, 1-Unit
Voltage
125/250 Volt
Wire Count
4

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477695302
Color
Black
Finish
Enamel Coated
Product UPC
07847769530
Weight
0.2900 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
CSA
22.2 No 42,C22.2 No.14,C22.2 No.65
NEMA
  • 14-50R
Features
  • DURABLE Shallow design built of durable high-impact thermoplastic
  • EASY TO INSTALL Terminals marked for easy identification and fast wiring, terminals require 40 in lbs
  • EFFICIENT Features heavy-gauge, high-performance copper contacts
  • CONVENIENT All mounting hardware included
  • COMPATIBLE Fits all wallplates with 2.15\" diameter center hole
