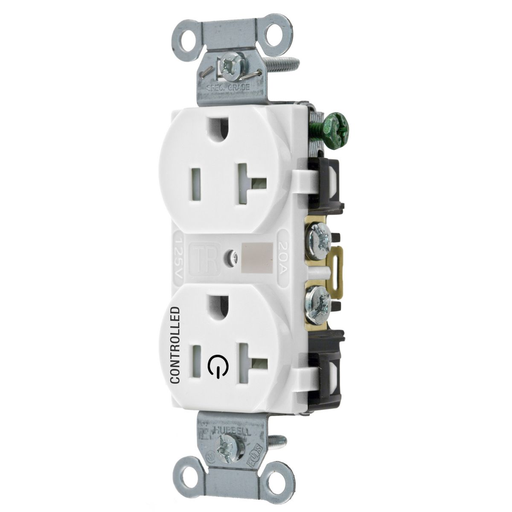

Image thumbnail 1
Image thumbnail 2
Email

Hubbell BR20C1WHITR1/2 CONTROLLED 20A 125V, B/S, TR DUP, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR20C1WHITR | Codale Part # 4191049
$10.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, 1/2 Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, White

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade Duplex
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
C22.2,CSA,No. 42Fed. Spec. W-C-596NEMA® WD-6,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500/2500.0000 Watt;Watt
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585582665
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Controlled
Product UPC
78358558266
Weight
0.2 lb

Dimensions

Height
1.7 Inch
Length
4.3 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
China
Features
  • Permanently marked with universal power symbol and the word \"CONTROLLED\" to visually identify receptacles used in automatic energy management systems
  • Patented TR design eliminates plug-in difficulty and TR complaints
  • Markings can be read regardless of mounting orientation
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load:Logic® control system or other available energy management system
