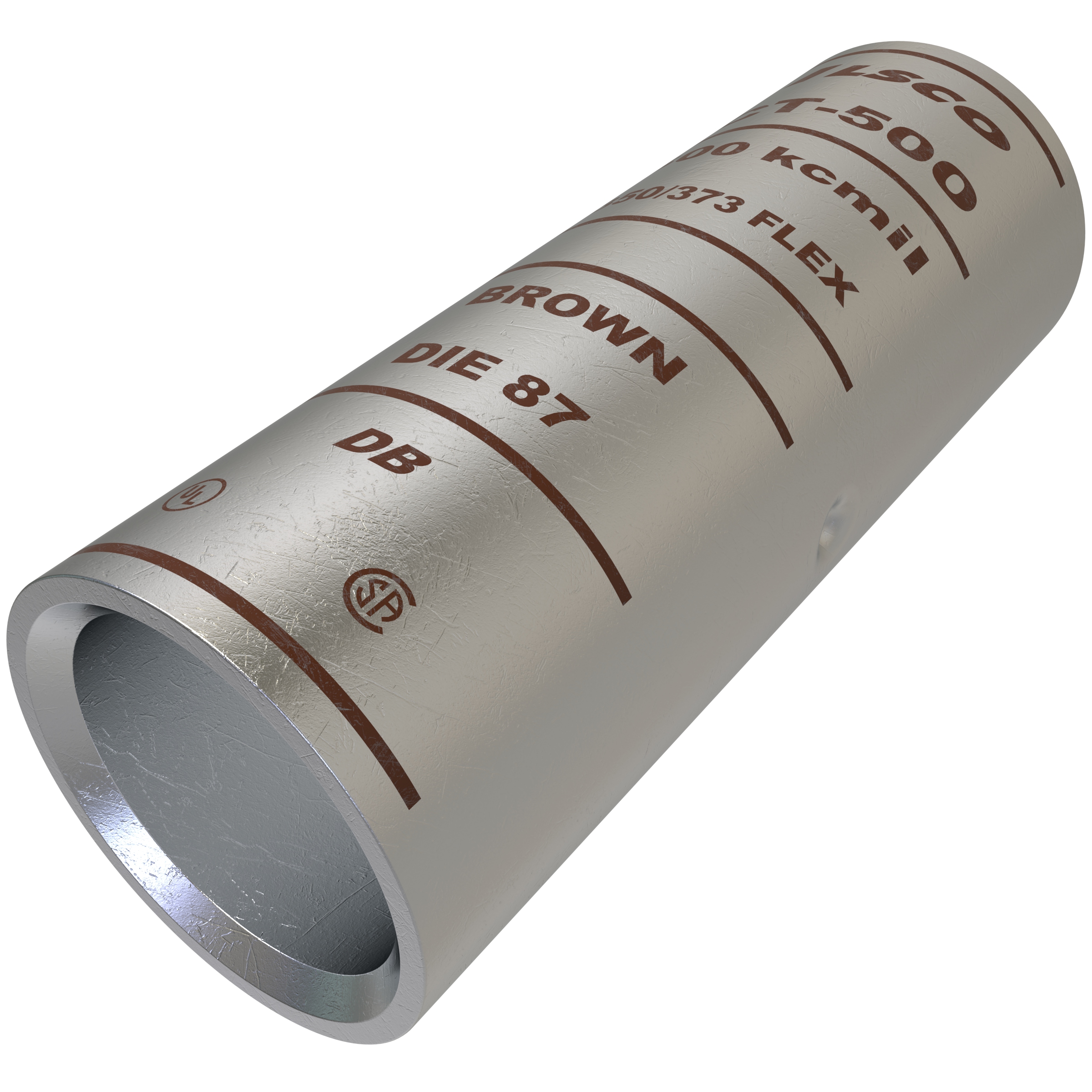

Ilsco CT-500 SureCrimp® Copper Compression Sleeve, Conductor Size 500, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CT-500 | Codale Part # 4194965
$32.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Sleeve, Short Barrel, Compression connection, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 500 kcmil, 1 conductors, no sight window, flex conductor range 350 G,H,I,K,M 373.7 DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-87,

Technical Information

Applications
Copper Compression Sleeve, Short Barrel
Color Coding
Brown
Conductor Size
250 kcmil
Conductor Type
Copper
Material
Copper
Size
L:2.875;W:1.062;H:1.062 IN
Standard
UL Specifications: UL 486A-B,CSA File Number: LR-29601,NEBS Rating: LEVEL 3,UL File Number: E6207
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Parallel
Voltage
600 Volt-35 kV

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669125344
Color
Silver
Finish
Tin Plated
Product UPC
78366912534
Used With
Splicer/Reducer

Dimensions

Inside Diameter
0.828 in
Length
2.875 in
Outside Diameter
1.062 in
