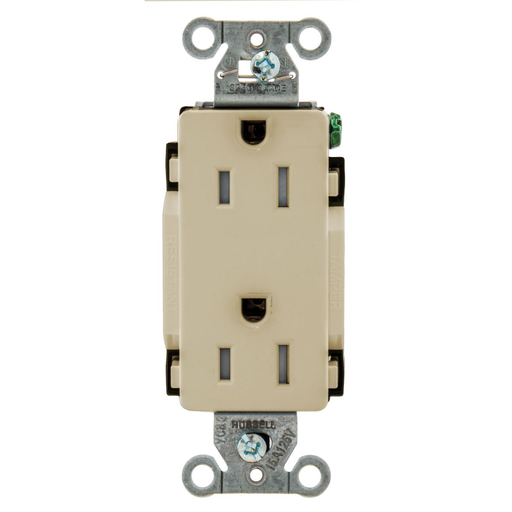

Product image for Hubbell DR15ITR TAMP RES, DECO FACE, 15A 125V, 5-15R, IV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Hubbell DR15ITR TAMP RES, DECO FACE, 15A 125V, 5-15R, IV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR15ITR | Codale Part # 4195576
$5.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tamper Resistant?
Yes
Tc Connection
Back and Side Wired
Type
Decorator, Tamper-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585144368
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358514436
Weight
0.15 lb

Dimensions

Height
3.28 Inch
Length
1.56 Inch
Width
1.14 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
