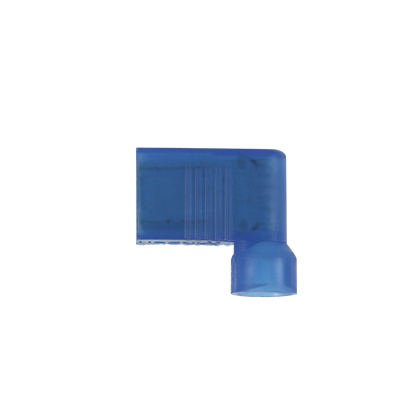

Panduit DNFR14-206FIB-L Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DNFR14-206FIB-L | Codale Part # 4195580
$277.04/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Tc Connection
Funnel Entry
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983120253
Color
Blue
Finish
Tinned
Product UPC
07498312025
UNSPSC
39121409
Weight
0.2500 lb

Dimensions

Depth
0.6 Inch
Height
0.6 Inch
Overall Length
0.58 in
Width
0.6 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Prop 65
  • No
