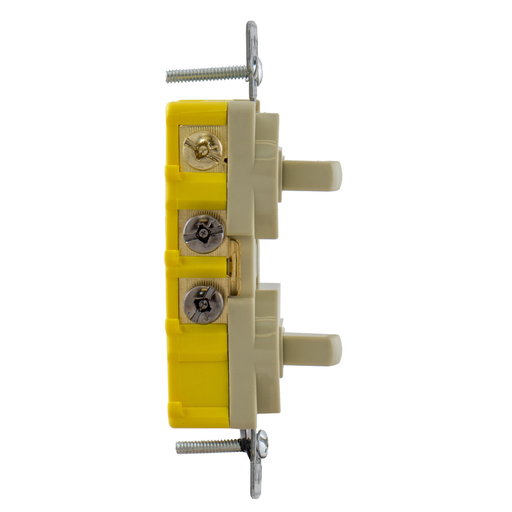

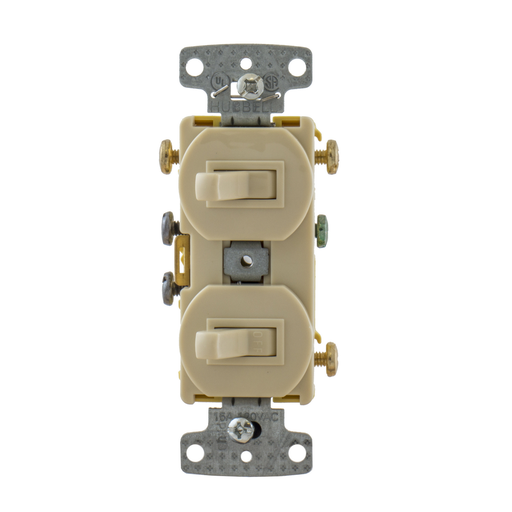

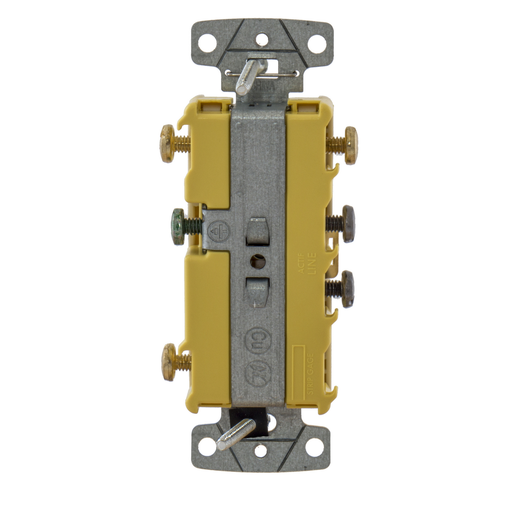

Hubbell RC103I 15 Amp 120 VAC 1-Pole 3-Way Ivory Combination Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RC103I | Codale Part # 4196070
$52.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Combination Devices, Residential Grade, 1) Single Pole Toggle, 1) Three Way Toggle, 15A 120V AC, Self fGrounding, Side Wired, Ivory

Technical Information

Action
Toggle
Actuator
Toggle
Amperage
15 Amp
Applications
Circuit Control
Contact Configuration
Two Position
Contact Rating
15A
Current
15 Amp
Number of Poles
1 Pole
Operating Cycles
30k
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Size
Standard Size
Standard
UL
Tc Connection
Side Wired
Type
Standard
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Trade Select

General Product Info

12-Digit UPC
883778109904
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
88377810990
Weight
0.1500 lb

Dimensions

Height
1.6 Inch
Length
4.2 Inch
Width
2.510 in

Certifications and Compliance

Country of Origin
China
Features
  • Quiet snap action mechanism
  • Self-grounding staple is standard
  • Elongated strap with continuous plaster ears
  • Standard Product
