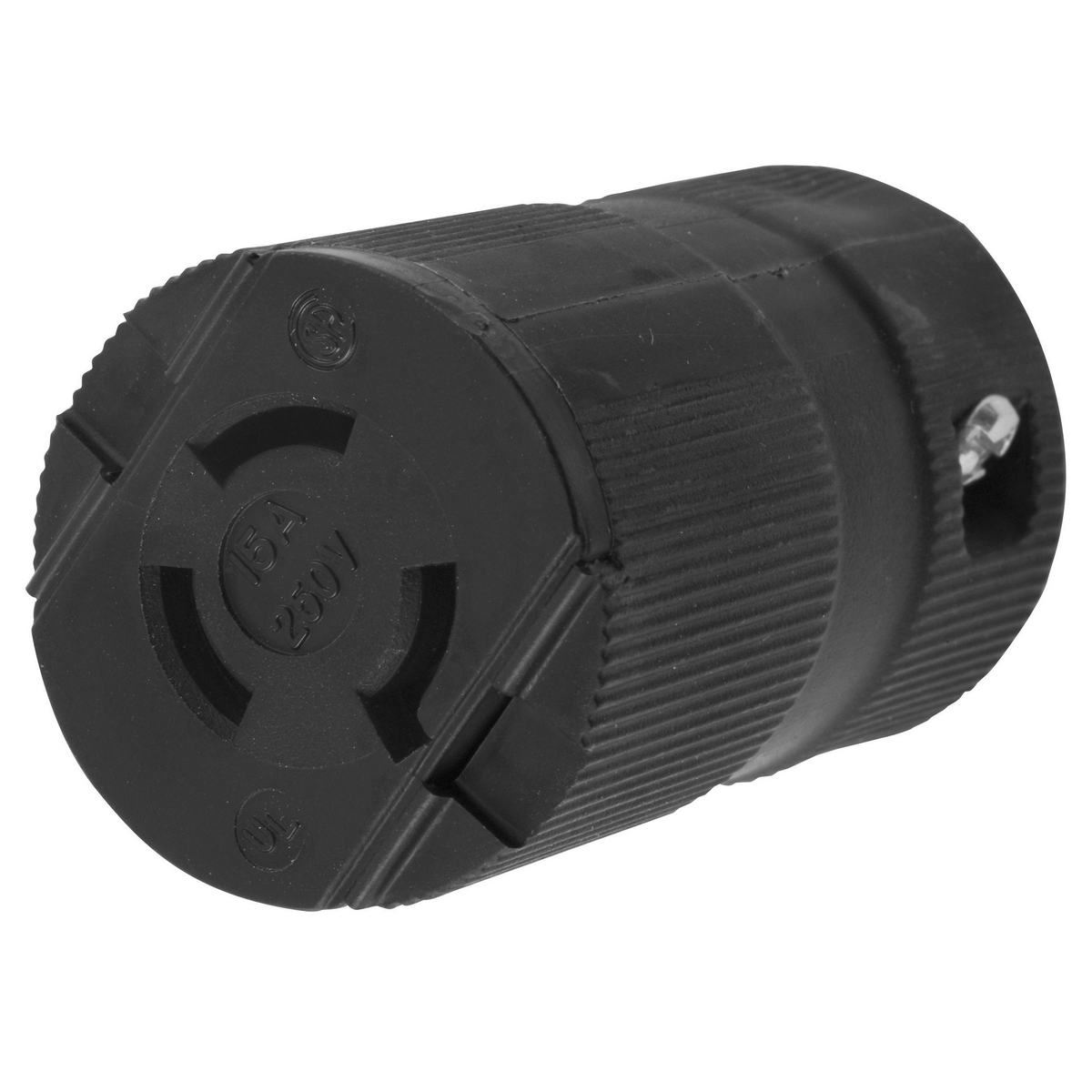

Hubbell HBL4579VBK Locking Connector, 15A 250V, L6-15R, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4579VBK | Codale Part # 4197706
$66.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Female Connector Body, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black Nylon.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Current
15 Amp
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
NEMA

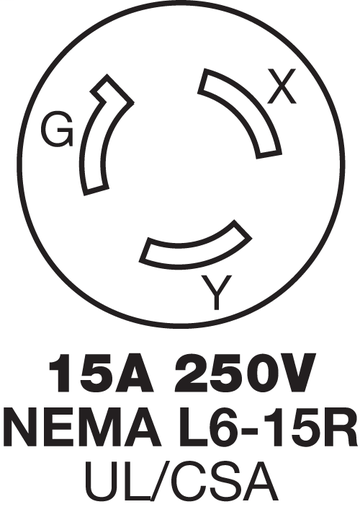

L6-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Standard
Voltage
250 Volt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585043227
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358504322
Weight
0.15 lb

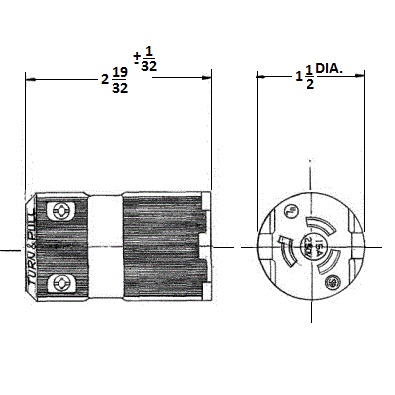

Dimensions

Height
2.59 Inch
Length
1-1/2 Inch
Width
1.50 in

Certifications and Compliance

Country of Origin
USA
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
